DTC U1002: Lost Communication with Gateway Module (Network Gateway ECU) [06/2014 - 10/2016]: Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with harness connected (Network Gateway ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition	Result
   K47-13 (CA2H) - K47-12 (CA2L)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω	Below 54 Ω: Short circuit between bus lines
   			70 Ω or higher: Open circuit in main bus lines
   K47-13 (CA2H) - K47-4 (GND)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short
   K47-12 (CA2L) - K47-4 (GND)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   K47-13 (CA2H) - K47-2 (BATT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short
   K47-12 (CA2L) - K47-2 (BATT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short

   Result

   Result	Proceed to
   OK	A
   Open circuit in CAN main bus lines	B
   Short circuit between bus lines	C
   Ground short +B short	D

Result:

B

See step  3

Result:

C

See step  9

Result:

D

See step  16

Result:

A

See step  2

1. Reconnect the cable to the negative (-) battery terminal.
2. Connect the Techstream to the DLC3.
3. Turn the engine switch on (IG).
4. Turn the Techstream on.
5. Clear the DTCs.

   Body Electrical > Gateway > Clear DTCs

6. Turn the engine switch off.
7. Turn the engine switch on (IG).
8. Check for DTCs.

   Body Electrical > Gateway > Trouble Codes

   Result

   Result	Proceed to
   DTC U1002 is not output from network gateway ECU (Techstream display: Gateway)	A
   DTC U1002 is output from network gateway ECU (Techstream display: Gateway)	B

Result:

A

SYMPTOM SIMULATION. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [06/2014 - 08/2015]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - 10/2016]

Result:

B

REPLACE NETWORK GATEWAY ECU. Refer to  REMOVAL [04/2013 - 10/2016]

1. Disconnect the K47 network gateway ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Network Gateway ECU)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K47-13 (CA2H) - K47-12 (CA2L)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω

   Result

   Result
   OK
   NG

Result:

OK

REPLACE NETWORK GATEWAY ECU. Refer to  REMOVAL [04/2013 - 10/2016]

Result:

NG

See step  4

1. Reconnect the K47 network gateway ECU connector.
2. Disconnect the K107 No. 2 CAN junction terminal connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to No. 2 CAN Junction Terminal)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-3 (CANH) - K107-2 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω

   Result

   Result
   OK
   NG

Result:

OK

REPLACE NO. 2 CAN JUNCTION TERMINAL

Result:

NG

See step  5

1. Reconnect the K107 No. 2 CAN junction terminal connector.
2. Disconnect the K111 No. 3 CAN junction connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to No. 3 CAN Junction Connector)
   *b	to No. 4 CAN Junction Connector
   *c	to Network Gateway ECU

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition	Connected to
   K111-3 (CANH) - K111-14 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω	No. 4 CAN junction connector
   K111-4 (CANH) - K111-15 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω	Network gateway ECU

   Result

   Result	Proceed to
   OK	A
   NG (Network gateway ECU main lines)	B
   NG (No. 4 CAN junction connector main lines)	C

Result:

A

REPLACE NO. 3 CAN JUNCTION CONNECTOR

Result:

B

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NETWORK GATEWAY ECU - NO. 3 CAN JUNCTION CONNECTOR)

Result:

C

See step  6

1. Reconnect the K111 No. 3 CAN junction connector.
2. Disconnect the K113 No. 4 CAN junction connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to No. 4 CAN Junction Connector)
   *b	to No. 3 CAN Junction Connector
   *c	to No. 10 CAN Junction Connector

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition	Connected to
   K113-1 (CANH) - K113-12 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω	No. 3 CAN junction connector
   K113-2 (CANH) - K113-13 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω	No. 10 CAN junction connector

   Result

   Result	Proceed to
   OK	A
   NG (No. 3 CAN junction connector main lines)	B
   NG (No. 10 CAN junction connector main lines)	C

Result:

A

REPLACE NO. 4 CAN JUNCTION CONNECTOR

Result:

B

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - NO. 4 CAN JUNCTION CONNECTOR)

Result:

C

See step  7

1. Reconnect the K113 No. 4 CAN junction connector.
2. Disconnect the S17 No. 10 CAN junction connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to No. 10 CAN Junction Connector)
   *b	to No. 4 CAN Junction Connector
   *c	to No. 13 CAN Junction Connector

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition	Connected to
   S17-1 (CANH) - S17-7 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω	No. 4 CAN junction connector
   S17-2 (CANH) - S17-8 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω	No. 13 CAN junction connector

   Result

   Result	Proceed to
   OK	A
   NG (No. 4 CAN junction connector main lines)	B
   NG (No. 13 CAN junction connector main lines)	C

Result:

A

REPLACE NO. 10 CAN JUNCTION CONNECTOR

Result:

B

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - NO. 4 CAN JUNCTION CONNECTOR)

Result:

C

See step  8

1. Reconnect the S17 No. 10 CAN junction connector.
2. Disconnect the Q57 No. 13 CAN junction connector.

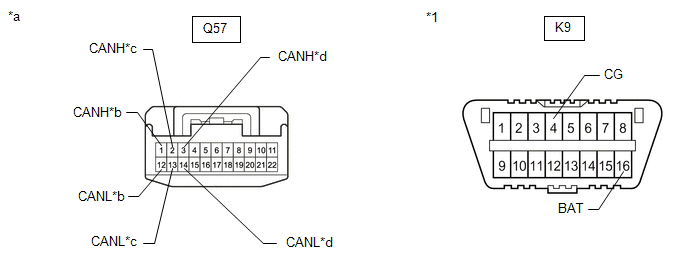

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to No. 13 CAN Junction Connector)
   *b	to No. 10 CAN Junction Connector
   *c	to No. 2 CAN Junction Terminal

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition	Connected to
   Q57-1 (CANH) - Q57-12 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω	No. 10 CAN junction connector
   Q57-2 (CANH) - Q57-13 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω	No. 2 CAN junction terminal

   Result

   Result	Proceed to
   OK	A
   NG (No. 10 CAN junction connector main lines)	B
   NG (No. 2 CAN junction terminal main lines)	C

Result:

A

REPLACE NO. 13 CAN JUNCTION CONNECTOR

Result:

B

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - NO. 13 CAN JUNCTION CONNECTOR)

Result:

C

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 13 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)

1. Disconnect the K47 network gateway ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Network Gateway ECU)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K47-13 (CA2H) - K47-12 (CA2L)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω

   Result

   Result
   OK
   NG

Result:

OK

REPLACE NETWORK GATEWAY ECU. Refer to  REMOVAL [04/2013 - 10/2016]

Result:

NG

See step  10

1. Reconnect the K47 network gateway ECU connector.
2. Disconnect the K107 No. 2 CAN junction terminal connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to No. 2 CAN Junction Terminal)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K107-3 (CANH) - K107-2 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω

   Result

   Result
   OK
   NG

Result:

OK

REPLACE NO. 2 CAN JUNCTION TERMINAL

Result:

NG

See step  11

1. Reconnect the K107 No. 2 CAN junction terminal connector.
2. Disconnect the K111 No. 3 CAN junction connector.

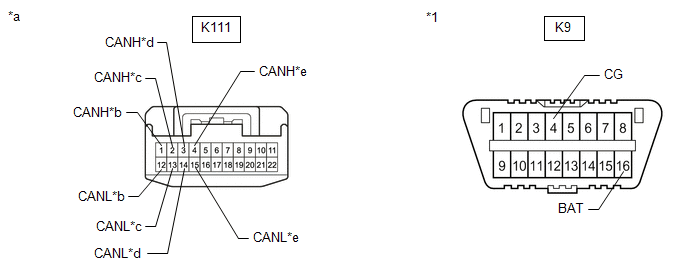

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to No. 3 CAN Junction Connector)
   *b	to Absorber Control ECU (w/ AVS System)
   *c	to 4WD ECU Assembly (for AWD)
   *d	to No. 4 CAN Junction Connector
   *e	to Network Gateway ECU

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition	Connected to
   K111-1 (CANH) - K111-12 (CANL)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Absorber control ECU*1
   K111-2 (CANH) - K111-13 (CANL)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	4WD ECU assembly*2
   K111-3 (CANH) - K111-14 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω	No. 4 CAN junction connector
   K111-4 (CANH) - K111-15 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω	Network gateway ECU

   • *1: w/ AVS System
   • *2: for AWD

   Result

   Result	Proceed to
   OK	A
   NG (Network gateway ECU main lines)	B
   NG (ECU or sensor branch lines)	C
   NG (No. 4 CAN junction connector main lines)	D

Result:

A

REPLACE NO. 3 CAN JUNCTION CONNECTOR

Result:

B

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NETWORK GATEWAY ECU - NO. 3 CAN JUNCTION CONNECTOR)

Result:

C

See step  15

Result:

D

See step  12

1. Reconnect the K111 No. 3 CAN junction connector.
2. Disconnect the K113 No. 4 CAN junction connector.

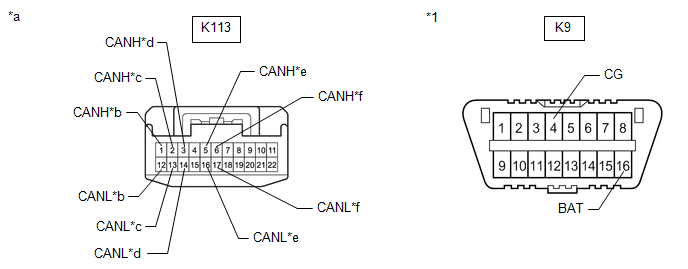

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to No. 4 CAN Junction Connector)
   *b	to No. 3 CAN Junction Connector
   *c	to No. 10 CAN Junction Connector
   *d	to Option Connector (Bus Buffer ECU) (w/ Option Connector)
   *e	to Driving Support ECU Assembly (w/ Pre-collision System)
   *f	to Clearance Warning ECU Assembly (w/ Intuitive Parking Assist System)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition	Connected to
   K113-1 (CANH) - K113-12 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω	No. 3 CAN junction connector
   K113-2 (CANH) - K113-13 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω	No. 10 CAN junction connector
   K113-3 (CANH) - K113-14 (CANL)	Cable disconnected from negative (-) battery terminal	1 MΩ or higher	Option connector (bus buffer ECU)*1
   K113-5 (CANH) - K113-16 (CANL)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Driving support ECU assembly*2
   K113-6 (CANH) - K113-17 (CANL)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Clearance warning ECU assembly*3

   • *1: w/ Option Connector
   • *2: w/ Pre-collision System
   • *3: w/ Intuitive Parking Assist System

   Result

   Result	Proceed to
   OK	A
   NG (No. 3 CAN junction connector main lines)	B
   NG (ECU or sensor branch lines)	C
   NG (No. 10 CAN junction connector main lines)	D

Result:

A

REPLACE NO. 4 CAN JUNCTION CONNECTOR

Result:

B

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - NO. 4 CAN JUNCTION CONNECTOR)

Result:

C

See step  15

Result:

D

See step  13

1. Reconnect the K113 No. 4 CAN junction connector.
2. Disconnect the S17 No. 10 CAN junction connector.

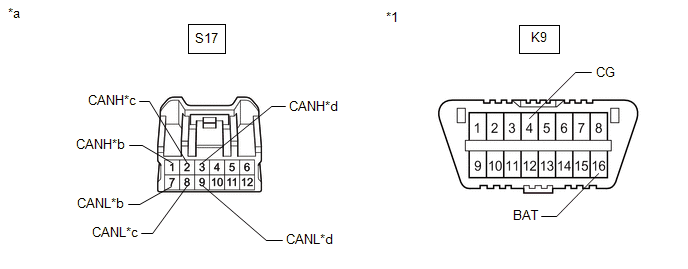

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to No. 10 CAN Junction Connector)
   *b	to No. 4 CAN Junction Connector
   *c	to No. 13 CAN Junction Connector
   *d	to Lane Departure Warning Camera (w/ Lane Departure Alert System)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition	Connected to
   S17-1 (CANH) - S17-7 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω	No. 4 CAN junction connector
   S17-2 (CANH) - S17-8 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω	No. 13 CAN junction connector
   S17-3 (CANH) - S17-9 (CANL)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Lane departure warning camera*

   1. *: w/ Lane Departure Alert System

   Result

   Result	Proceed to
   OK	A
   NG (No. 4 CAN junction connector main lines)	B
   NG (ECU or sensor branch lines)	C
   NG (No. 13 CAN junction connector main lines)	D

Result:

A

REPLACE NO. 10 CAN JUNCTION CONNECTOR

Result:

B

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 4 CAN JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)

Result:

C

See step  15

Result:

D

See step  14

1. Reconnect the S17 No. 10 CAN junction connector.
2. Disconnect the Q57 No. 13 CAN junction connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to No. 13 CAN Junction Connector)
   *b	to No. 10 CAN Junction Connector
   *c	to No. 2 CAN Junction Terminal
   *d	to Blind Spot Monitor Sensor LH (w/ Blind Spot Monitor System)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition	Connected to
   Q57-1 (CANH) - Q57-12 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω	No. 10 CAN junction connector
   Q57-2 (CANH) - Q57-13 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω	No. 2 CAN junction terminal
   Q57-3 (CANH) - Q57-14 (CANL)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Blind spot monitor sensor LH*

   1. *: w/ Blind Spot Monitor System

   Result

   Result	Proceed to
   OK	A
   NG (No. 10 CAN junction connector main lines)	B
   NG (ECU or sensor branch lines)	C
   NG (No. 2 CAN junction terminal main lines)	D

Result:

A

REPLACE NO. 13 CAN JUNCTION CONNECTOR

Result:

B

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - NO. 13 CAN JUNCTION CONNECTOR)

Result:

D

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 13 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)

Result:

C

See step  15

1. Reconnect all wire harness connectors.
2. Disconnect the connector that includes terminals CANH and CANL from the ECU or sensor to which the short circuited branch line is connected.

   Refer to TERMINALS OF ECU [06/2014 - 08/2015] , or refer to TERMINALS OF ECU [08/2015 - 10/2016]

3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with harness connected (Network Gateway ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K47-13 (CA2H) - K47-12 (CA2L)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

   HINT:

   If the resistance becomes normal (between 54 and 69 Ω) when the connector is disconnected from the ECU or sensor, there may be a short in the ECU or sensor.

   Result

   Result
   OK
   NG

Result:

OK

REPLACE CORRESPONDING ECU OR SENSOR

Result:

NG

REPAIR OR REPLACE CORRESPONDING ECU OR SENSOR BRANCH LINES OR CONNECTOR

1. Disconnect the K111 No. 3 CAN junction connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 3 CAN Junction Connector)	*b	to Absorber Control ECU (w/ AVS System)
   *c	to 4WD ECU Assembly (for AWD)	*d	to No. 4 CAN Junction Connector
   *e	to Network Gateway ECU	-	-

   Standard Resistance

   Tester Connection	Condition	Specified Condition	Result	Connected to
   K111-1 (CANH) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short	Absorber control ECU*1
   K111-12 (CANL) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   K111-2 (CANH) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short	4WD ECU assembly*2
   K111-13 (CANL) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   K111-3 (CANH) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short	No. 4 CAN junction connector
   K111-14 (CANL) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   K111-4 (CANH) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short	Network gateway ECU
   K111-15 (CANL) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   K111-1 (CANH) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short	Absorber control ECU*1
   K111-12 (CANL) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short
   K111-2 (CANH) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short	4WD ECU assembly*2
   K111-13 (CANL) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short
   K111-3 (CANH) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short	No. 4 CAN junction connector
   K111-14 (CANL) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short
   K111-4 (CANH) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short	Network gateway ECU
   K111-15 (CANL) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short

   • *1: w/ AVS System
   • *2: for AWD

   HINT:

   • It is only necessary to perform the inspection in the above table for the result (short circuit) that was obtained in the Check Sub Bus 2 inspection.
   • Find the necessary inspection from the Result column that matches the result in the Result column from the Check Sub Bus 2 inspection.

   Result

   Result	Proceed to
   OK	A
   NG (Network gateway ECU main line)	B
   NG (ECU or sensor branch line)	C
   NG (No. 4 CAN junction connector main line)	D

Result:

A

REPLACE NO. 3 CAN JUNCTION CONNECTOR

Result:

C

See step  21

Result:

D

See step  18

Result:

B

See step  17

1. Reconnect the K111 No. 3 CAN junction connector.
2. Disconnect the K47 network gateway ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Network Gateway ECU)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition	Result
   K47-13 (CA2H) - K47-4 (GND)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short
   K47-12 (CA2L) - K47-4 (GND)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   K47-13 (CA2H) - K47-2 (BATT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short
   K47-12 (CA2L) - K47-2 (BATT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short

   HINT:

   • It is only necessary to perform the inspection in the above table for the result (short circuit) that was obtained in the Check Sub Bus 2 inspection.
   • Find the necessary inspection from the Result column that matches the result in the Result column from the Check Sub Bus 2 inspection.

   Result

   Result
   OK
   NG

Result:

OK

REPLACE NETWORK GATEWAY ECU. Refer to  REMOVAL [04/2013 - 10/2016]

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NETWORK GATEWAY ECU - NO. 3 CAN JUNCTION CONNECTOR)

1. Reconnect the K111 No. 3 CAN junction connector.
2. Disconnect the K113 No. 4 CAN junction connector.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 4 CAN Junction Connector)	*b	to No. 3 CAN Junction Connector
   *c	to No. 10 CAN Junction Connector	*d	to Option Connector (Bus Buffer ECU) (w/ Option Connector)
   *e	to Driving Support ECU Assembly (w/ Pre-collision System)	*f	to Clearance Warning ECU Assembly (w/ Intuitive Parking Assist System)

   Standard Resistance

   Tester Connection	Condition	Specified Condition	Result	Connected to
   K113-1 (CANH) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short	No. 3 CAN junction connector
   K113-12 (CANL) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   K113-2 (CANH) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short	No. 10 CAN junction connector
   K113-13 (CANL) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   K113-3 (CANH) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short	Option connector (bus buffer ECU)*1
   K113-14 (CANL) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   K113-5 (CANH) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short	Driving support ECU assembly*2
   K113-16 (CANL) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   K113-6 (CANH) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short	Clearance warning ECU assembly*3
   K113-17 (CANL) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   K113-1 (CANH) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short	No. 3 CAN junction connector
   K113-12 (CANL) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short
   K113-2 (CANH) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short	No. 10 CAN junction connector
   K113-13 (CANL) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short
   K113-3 (CANH) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short	Option connector (bus buffer ECU)*1
   K113-14 (CANL) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short
   K113-5 (CANH) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short	Driving support ECU assembly*2
   K113-16 (CANL) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short
   K113-6 (CANH) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short	Clearance warning ECU assembly*3
   K113-17 (CANL) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short

   • *1: w/ Option Connector
   • *2: w/ Pre-collision System
   • *3: w/ Intuitive Parking Assist System

   HINT:

   • It is only necessary to perform the inspection in the above table for the result (short circuit) that was obtained in the Check Sub Bus 2 inspection.
   • Find the necessary inspection from the Result column that matches the result in the Result column from the Check Sub Bus 2 inspection.

   Result

   Result	Proceed to
   OK	A
   NG (ECU or sensor branch line)	B
   NG (No. 3 CAN junction connector main line)	C
   NG (No. 10 CAN junction connector main line)	D

Result:

A

REPLACE NO. 4 CAN JUNCTION CONNECTOR

Result:

B

See step  21

Result:

C

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - NO. 4 CAN JUNCTION CONNECTOR)

Result:

D

See step  19

1. Reconnect the K113 No. 4 CAN junction connector.
2. Disconnect the S17 No. 10 CAN junction connector.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 10 CAN Junction Connector)	*b	to No. 4 CAN Junction Connector
   *c	to No. 13 CAN Junction Connector	*d	to Lane Departure Warning Camera (w/ Lane Departure Alert System)

   Standard Resistance

   Tester Connection	Condition	Specified Condition	Result	Connected to
   S17-1 (CANH) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short	No. 4 CAN junction connector
   S17-7 (CANL) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   S17-2 (CANH) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short	No. 13 CAN junction connector
   S17-8 (CANL) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   S17-3 (CANH) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short	Lane departure warning camera*
   S17-9 (CANL) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   S17-1 (CANH) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short	No. 4 CAN junction connector
   S17-7 (CANL) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short
   S17-2 (CANH) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short	No. 13 CAN junction connector
   S17-8 (CANL) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short
   S17-3 (CANH) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short	Lane departure warning camera*
   S17-9 (CANL) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short

   1. *: w/ Lane Departure Alert System

   HINT:

   • It is only necessary to perform the inspection in the above table for the result (short circuit) that was obtained in the Check Sub Bus 2 inspection.
   • Find the necessary inspection from the Result column that matches the result in the Result column from the Check Sub Bus 2 inspection.

   Result

   Result	Proceed to
   OK	A
   NG (ECU or sensor branch line)	B
   NG (No. 4 CAN junction connector main line)	C
   NG (No. 13 CAN junction connector main line)	D

Result:

A

REPLACE NO. 10 CAN JUNCTION CONNECTOR

Result:

B

See step  21

Result:

C

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 4 CAN JUNCTION CONNECTOR - NO. 10 CAN JUNCTION CONNECTOR)

Result:

D

See step  20

1. Reconnect the S17 No. 10 CAN junction connector.
2. Disconnect the Q57 No. 13 CAN junction connector.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3	-	-
   *a	Front view of wire harness connector (to No. 13 CAN Junction Connector)	*b	to No. 10 CAN Junction Connector
   *c	to No. 2 CAN Junction Terminal	*d	to Blind Spot Monitor Sensor LH (w/ Blind Spot Monitor System)

   Standard Resistance

   Tester Connection	Condition	Specified Condition	Result	Connected to
   Q57-1 (CANH) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short	No. 10 CAN junction connector
   Q57-12 (CANL) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   Q57-2 (CANH) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short	No. 2 CAN junction terminal
   Q57-13 (CANL) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   Q57-3 (CANH) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short	Blind spot monitor sensor LH*
   Q57-14 (CANL) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   Q57-1 (CANH) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short	No. 10 CAN junction connector
   Q57-12 (CANL) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short
   Q57-2 (CANH) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short	No. 2 CAN junction terminal
   Q57-13 (CANL) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short
   Q57-3 (CANH) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short	Blind spot monitor sensor LH*
   Q57-14 (CANL) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short

   1. *: w/ Blind Spot Monitor System

   HINT:

   • It is only necessary to perform the inspection in the above table for the result (short circuit) that was obtained in the Check Sub Bus 2 inspection.
   • Find the necessary inspection from the Result column that matches the result in the Result column from the Check Sub Bus 2 inspection.

   Result

   Result	Proceed to
   OK	A
   NG (No. 10 CAN junction connector main line)	B
   NG (ECU or sensor branch line)	C
   NG (No. 2 CAN junction terminal main line)	D

Result:

A

REPLACE NO. 13 CAN JUNCTION CONNECTOR

Result:

B

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 10 CAN JUNCTION CONNECTOR - NO. 13 CAN JUNCTION CONNECTOR)

Result:

D

See step  22

Result:

C

See step  21

1. Reconnect all wire harness connectors.
2. Disconnect the connector that includes terminals CANH and CANL from the ECU or sensor to which the bus line shorted to +B or shorted to GND is connected.

   Refer to TERMINALS OF ECU [06/2014 - 08/2015] , or refer to TERMINALS OF ECU [08/2015 - 10/2016]

3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with harness connected (Network Gateway ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition	Result
   K47-13 (CA2H) - K47-4 (GND)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short
   K47-12 (CA2L) - K47-4 (GND)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   K47-13 (CA2H) - K47-2 (BATT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short
   K47-12 (CA2L) - K47-2 (BATT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short

   HINT:

   • It is only necessary to perform the inspection in the above table for the result (short circuit) that was obtained in the Check Sub Bus 2 inspection.
   • If the resistance becomes normal when the connector is disconnected from the ECU or sensor, there may be a short in the ECU or sensor.
   • Find the necessary inspection from the Result column that matches the result in the Result column from the Check Sub Bus 2 inspection.

   Result

   Result
   OK
   NG

Result:

OK

REPLACE CORRESPONDING ECU OR SENSOR

Result:

NG

REPAIR OR REPLACE CORRESPONDING ECU OR SENSOR BRANCH LINE OR CONNECTOR

1. Reconnect the Q57 No. 13 CAN junction connector.
2. Disconnect the K107 No. 2 CAN junction terminal connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	DLC3
   *a	Front view of wire harness connector (to No. 2 CAN Junction Terminal)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition	Result
   K107-3 (CANH) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANH ground short
   K107-2 (CANL) - K9-4 (CG)	Cable disconnected from negative (-) battery terminal	200 Ω or higher	Below 200 Ω: CANL ground short
   K107-3 (CANH) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANH +B short
   K107-2 (CANL) - K9-16 (BAT)	Cable disconnected from negative (-) battery terminal	6 kΩ or higher	Below 6 kΩ: CANL +B short

   HINT:

   • It is only necessary to perform the inspection in the above table for the result (short circuit) that was obtained in the Check Sub Bus 2 inspection.
   • Find the necessary inspection from the Result column that matches the result in the Result column from the Check Sub Bus 2 inspection.

   Result

   Result
   OK
   NG

Result:

OK

REPLACE NO. 2 CAN JUNCTION TERMINAL

Result:

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 13 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
