Installation [08/2013 - ]

  1. INSTALL STEERING PAD SWITCH ASSEMBLY
    1. Engage the 2 pins to install the steering pad switch.

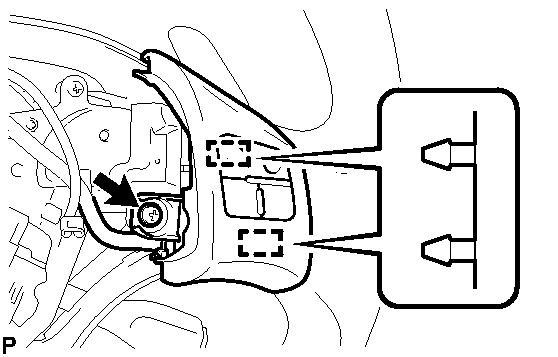

      Fig 1: Identifying Steering Pad Switch Screw & Pins
      GTY135784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.

      Torque: 2.4 N*m (25 kgf*cm, 21 in.*lbf)

    3. Engage the 2 pins to install the steering pad switch.

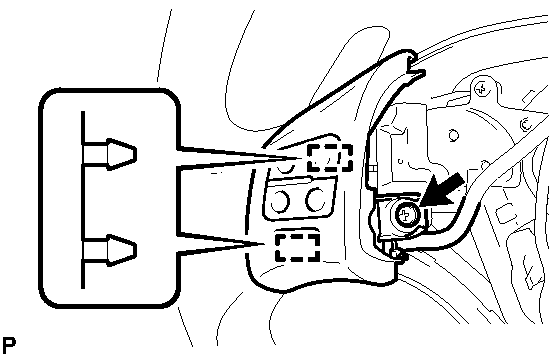

      Fig 2: Identifying Steering Pad Switch Screw & Pins
      GTY153717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the screw.

      Torque: 2.4 N*m (25 kgf*cm, 21 in.*lbf)

    5. Connect the steering pad switch connector to the spiral cable.
    6. Connect the cruise control main switch connector and install the connector clamp.

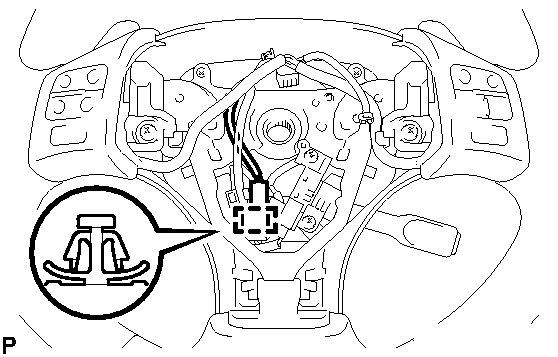

      Fig 3: Identifying Pad Switch Connector Clamp
      GTY136083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL STEERING PAD  . Refer to INSTALLATION [08/2013 - ] - Step 1
  3. INSTALL LOWER NO. 3 STEERING WHEEL COVER  . Refer to INSTALLATION [08/2013 - ] - Step 2
  4. INSTALL LOWER NO. 2 STEERING WHEEL COVER  . Refer to INSTALLATION [08/2013 - ] - Step 3
  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  6. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light. Refer to DIAGNOSIS SYSTEM [08/2013 - ] .
