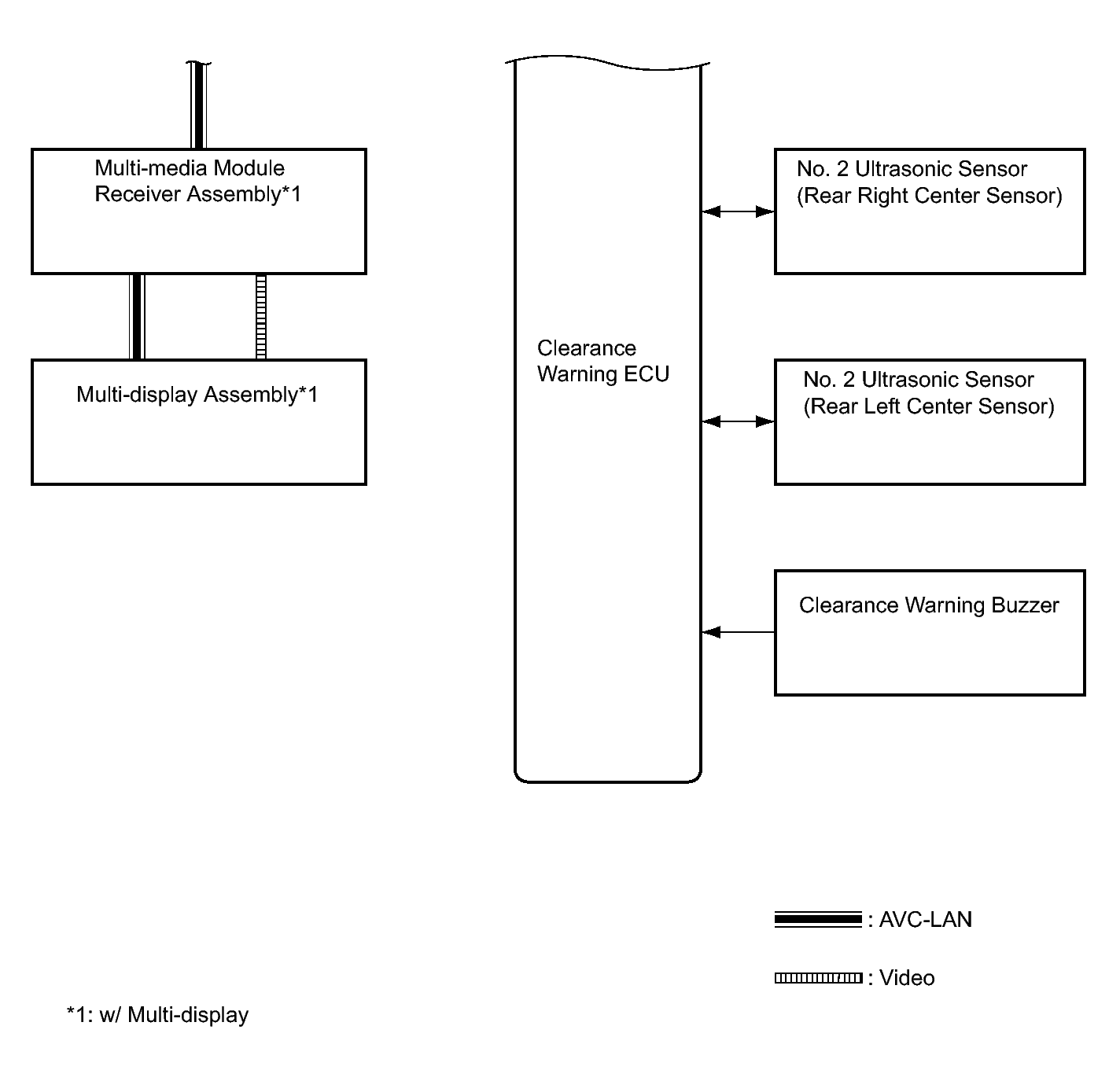

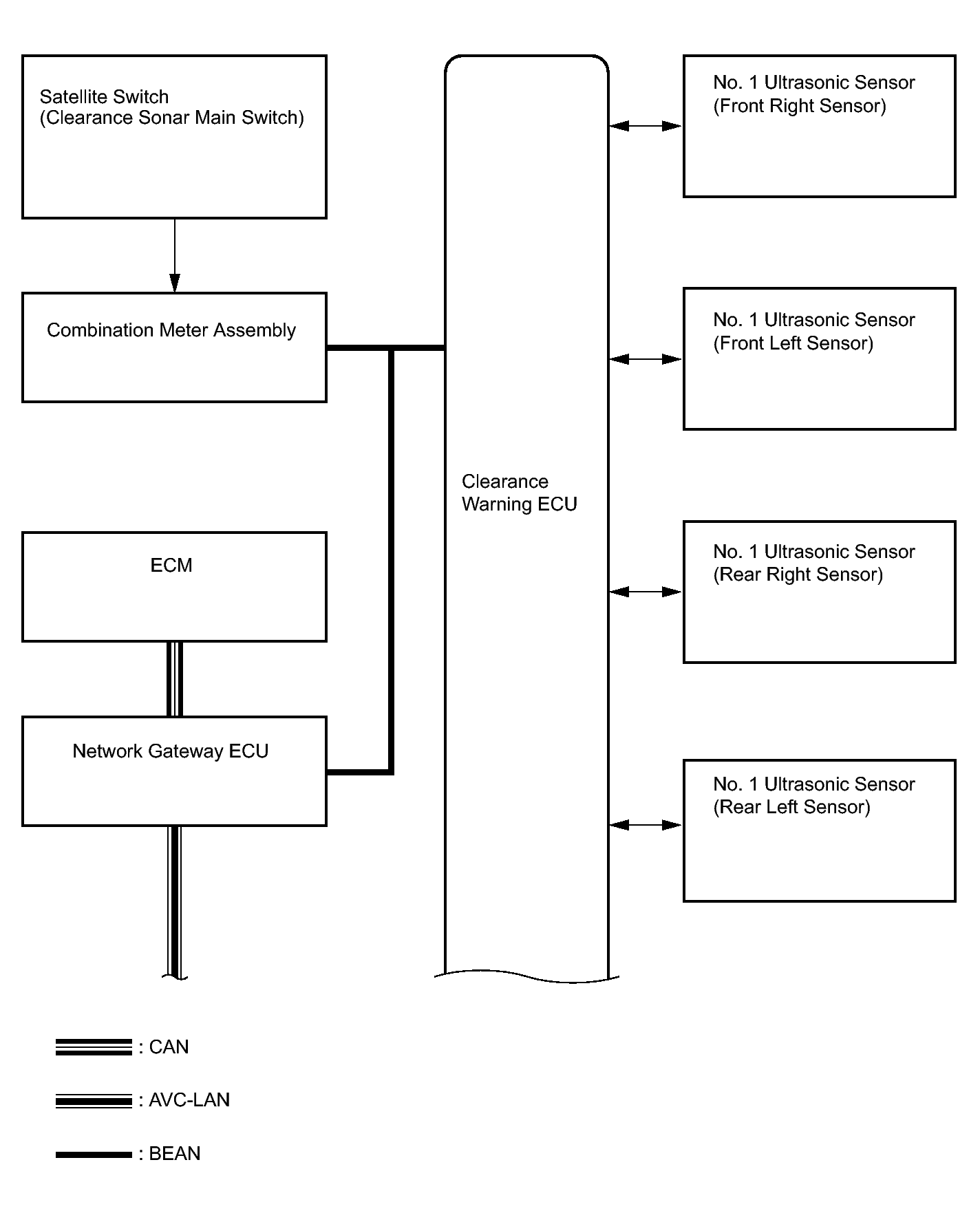

System Diagram [08/2013 - ]
INPUT SIGNAL TO CLEARANCE WARNING ECU
| Transmitting ECU (Transmitter) |
Signal | Communication Method |
|---|---|---|
| Combination Meter Assembly | Vehicle speed signal | BEAN |
| Satellite Switch | Clearance sonar main switch signal | Direct Line - BEAN |
| ECM | Shift position signal | CAN - BEAN |
| Multi-media Module Receiver Assembly*1 | Intuitive parking assist system setting change signal | AVC-LAN - BEAN |
*1: w/ Multi-display
OUTPUT SIGNAL FROM CLEARANCE WARNING ECU
| Receiving ECU | Signal | Communication Method |
|---|---|---|
| Combination Meter Assembly | Display signal | BEAN |
| Multi-media Module Receiver Assembly*1 | Display signal | BEAN - AVC-LAN |
*1: w/ Multi-display
