Installation [04/2013 - 08/2015]: Procedure

1. Check that the control rod of the rear shock absorber assembly is in the position shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	40°
   *b	Control Rod

   NOTE:

   If the control rod is not in the position shown in the illustration, turn the control rod to adjust the position before installing the absorber control actuator.

2. Install the absorber control actuator to the rear actuator support bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Absorber Control Actuator Output Shaft
   *b	Control Rod

   NOTE:

   Make sure to check that the absorber control actuator output shaft and control rod are securely connected.

3. Turn the absorber control actuator clockwise 40° until a click is felt.
   NOTE:

   • Depending on whether identification tape is attached to the wire harness of the absorber control actuator, the direction of the absorber control actuator differs.
   • Before turning the absorber control actuator, make sure to check that the absorber control actuator output shaft and control rod are securely connected.
   • Do not turn the absorber control actuator more than 40°.
   • Do not drop the absorber control actuator. If it is dropped, replace it with a new one.

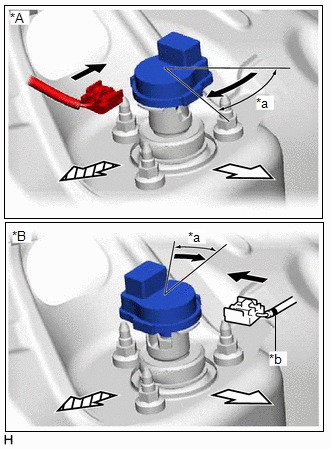

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/o Identification Tape
   *B	w/ Identification Tape
   *a	40°
   *b	Identification Tape (Pink)
   	Inside of the vehicle
   	Rear of the vehicle

4. Connect the connector.
5. Return the luggage compartment trim cover to its original position.
