Installation [11/2021 - ]: Procedure

INSTALL LEVEL WARNING SWITCH ASSEMBLY (except 2UR-GSE)

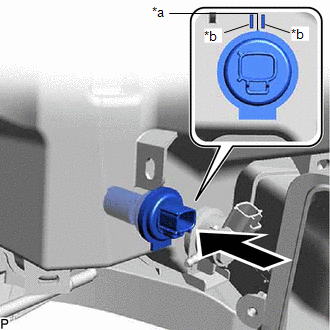

Install the level warning switch assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protrusion
*b	Marking

NOTE:

Make sure that the protrusion of the level warning switch assembly is between the 2 markings.

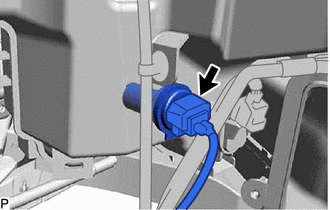

Connect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the washer hose.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ADD WINDSHIELD WASHER FLUID (except 2UR-GSE)
See step 2
INSTALL COOL AIR INTAKE DUCT (except 2UR-GSE)
1. Engage the 2 claws.
2. Install the cool air intake duct with the 3 bolts and screw.
INSTALL ENGINE UNDER COVER (except 2UR-GSE)
for 8AR-FTS:

Refer to PROCEDURE - Step 78

for 2GR-FKS:

Refer to PROCEDURE - Step 103
INSTALL FRONT BUMPER ASSEMBLY (except 2UR-GSE)
for Standard:

Refer to INSTALLATION [09/2020 - ]

for Sport Package:

Refer to INSTALLATION [09/2020 - ]

INSTALL LEVEL WARNING SWITCH ASSEMBLY (for 2UR-GSE)

Install the level warning switch assembly as shown in the illustration.

*a	Protrusion
*b	Marking

NOTE:

Make sure that the protrusion of the level warning switch assembly is between the 2 markings.

Connect the connector.

INSTALL FRONT FENDER LINER LH (for 2UR-GSE)
See step 3
INSTALL FRONT WHEEL OPENING EXTENSION PAD LH (for 2UR-GSE)
See step 5
INSTALL FRONT WHEEL LH (for 2UR-GSE)
Refer to PROCEDURE - Step 1 [09/2020 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]
