Components [11/2021 - ]

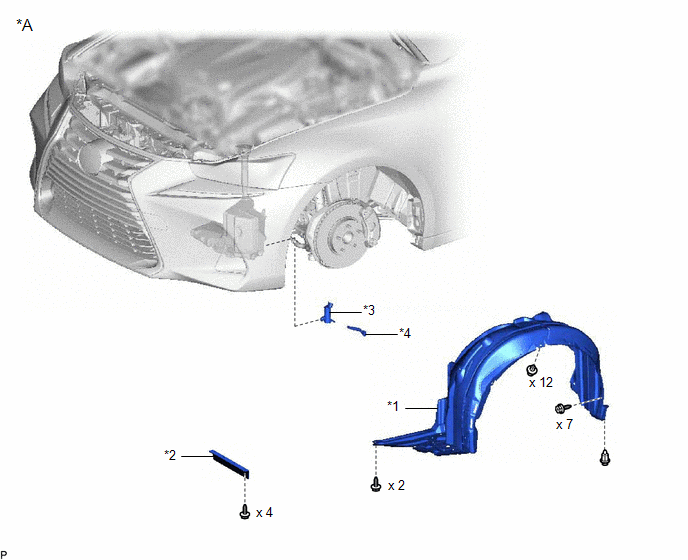

Fig 1: Headlight Cleaner Motor Replacement Components [11/2021 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	except 2UR-GSE	-	-
*1	FRONT FENDER LINER LH	*2	FRONT WHEEL OPENING EXTENSION PAD LH
*3	HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY	*4	HEADLIGHT CLEANER HOSE

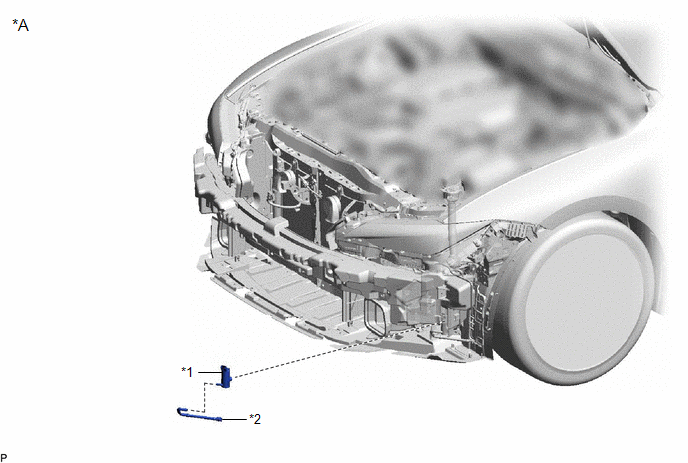

Fig 2: Headlight Cleaner Motor Replacement Components [11/2021 - ] (2 Of 2)

*A	for 2UR-GSE	-	-
*1	HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY	*2	HEADLIGHT CLEANER HOSE
