Removal [04/2013 - 08/2015]: Procedure

PRECAUTION
NOTE:
After turning the engine switch off, waiting time maybe required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.

Refer to PRECAUTION [04/2013 - 08/2015]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015]
REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 1
REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
REMOVE INLET NO. 1 AIR CLEANER
Refer to PROCEDURE - Step 20

REMOVE NO. 1 ENGINE COVER

Remove the 3 clips and No. 1 engine cover from the timing chain cover sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE INJECTOR DRIVER

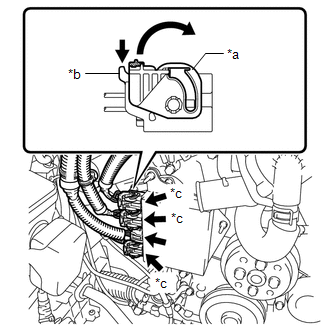

Push the lock and move each lock lever in the direction indicated by the arrow to disconnect the 3 connectors (with lock) from the injector driver.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

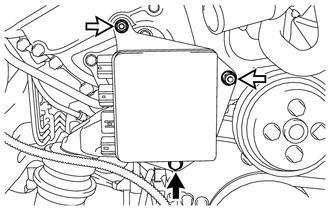

Remove the bolt, 2 nuts and injector driver from the timing chain cover sub-assembly.

	Bolt
	Nut

NOTE:

Be careful not to drop or strike the injector driver.
