Repair [10/2016 - 09/2018]: Procedure

  1. INSTALL UPPER HEADLIGHT PROTECTOR RETAINER

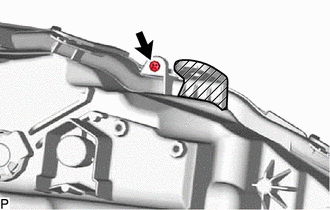

    1. Remove the screw.
      GTY778753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not reuse the removed screw.

    2. Cut off the part shaded in the illustration and sand smooth with sandpaper.

      HINT:

      After cutting off the part, place the upper headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer.

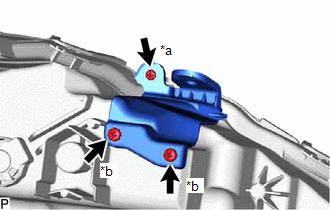

    3. Install the upper headlight protector retainer with the screw (A) and 2 screws (B).
      GTY824927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screw (A)
      *b Screw (B)
      NOTE:

      Make sure to use only the screws which were supplied with the upper headlight protector retainer.

        Diameter Length
      Screw (A) 3 mm (0.118 in.) 12 mm (0.472 in.)
      Screw (B) 5 mm (0.197 in.) 16 mm (0.630 in.)
