Components [09/2020 - ]

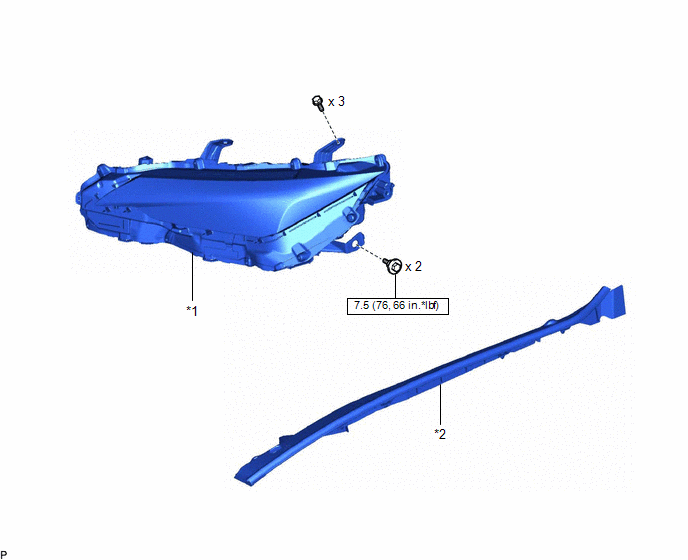

Fig 1: Headlight Assembly Replacement Components With Torque Specifications [09/2020 - ] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HEADLIGHT ASSEMBLY	*2	UPPER FRONT FENDER PROTECTOR
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

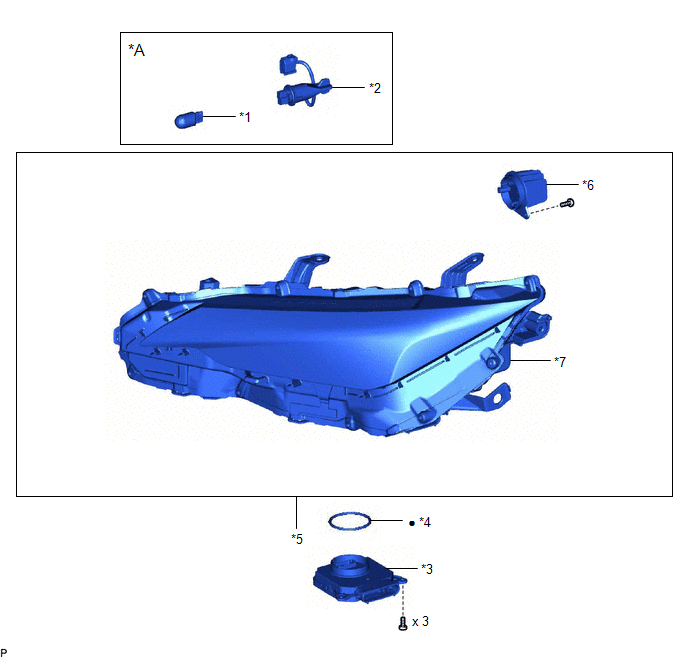

Fig 2: Headlight Assembly Replacement Components [09/2020 - ] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Bulb Type Turn Signal Light	-	-
*1	FRONT TURN SIGNAL LIGHT BULB	*2	HEADLIGHT CORD
*3	HEADLIGHT ECU SUB-ASSEMBLY	*4	HEADLIGHT GASKET
*5	HEADLIGHT UNIT ASSEMBLY	*6	NO. 1 HEADLIGHT CLEARANCE LED UNIT
*7	HEADLIGHT UNIT	-	-
•	Non-reusable part	-	-

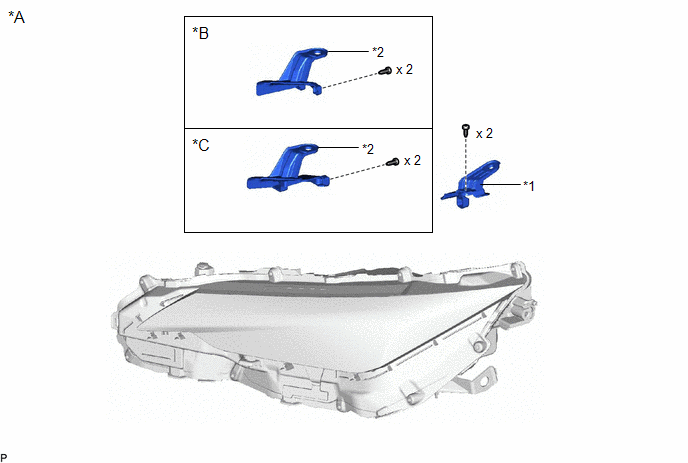

Fig 3: Headlight Assembly Replacement Components [09/2020 - ] (3 Of 3)

*A	Bracket for Repair	*B	for Single Beam Headlight
*C	for Triple Beam Headlight	-	-
*1	UPPER HEADLIGHT PROTECTOR RETAINER	*2	UPPER NO. 2 HEADLIGHT PROTECTOR RETAINER
