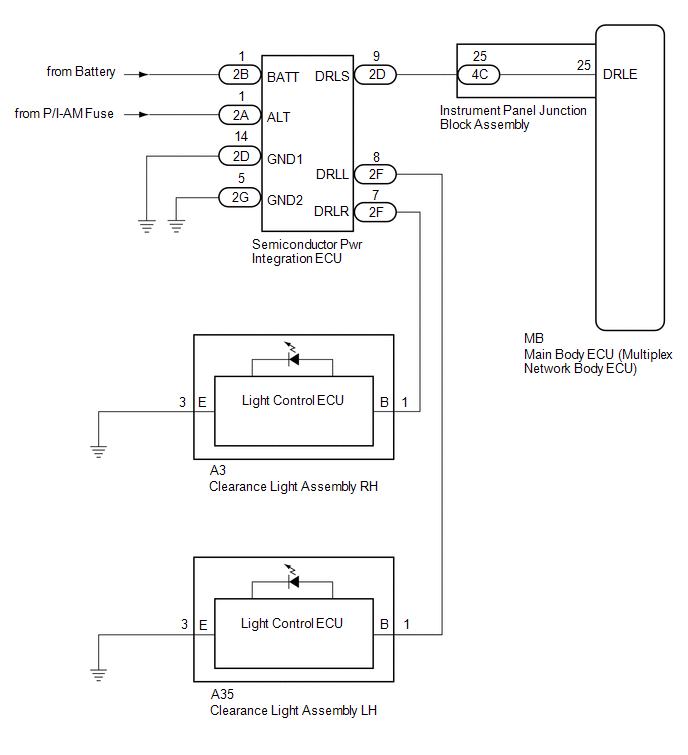

Daytime Running Light Relay Circuit [04/2013 - 10/2016]: Wiring Diagram

GTY459849

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
