System Diagram [08/2013 - ]

Fig 1: SFI System Wiring Diagram (1 Of 6)

GTY283138

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

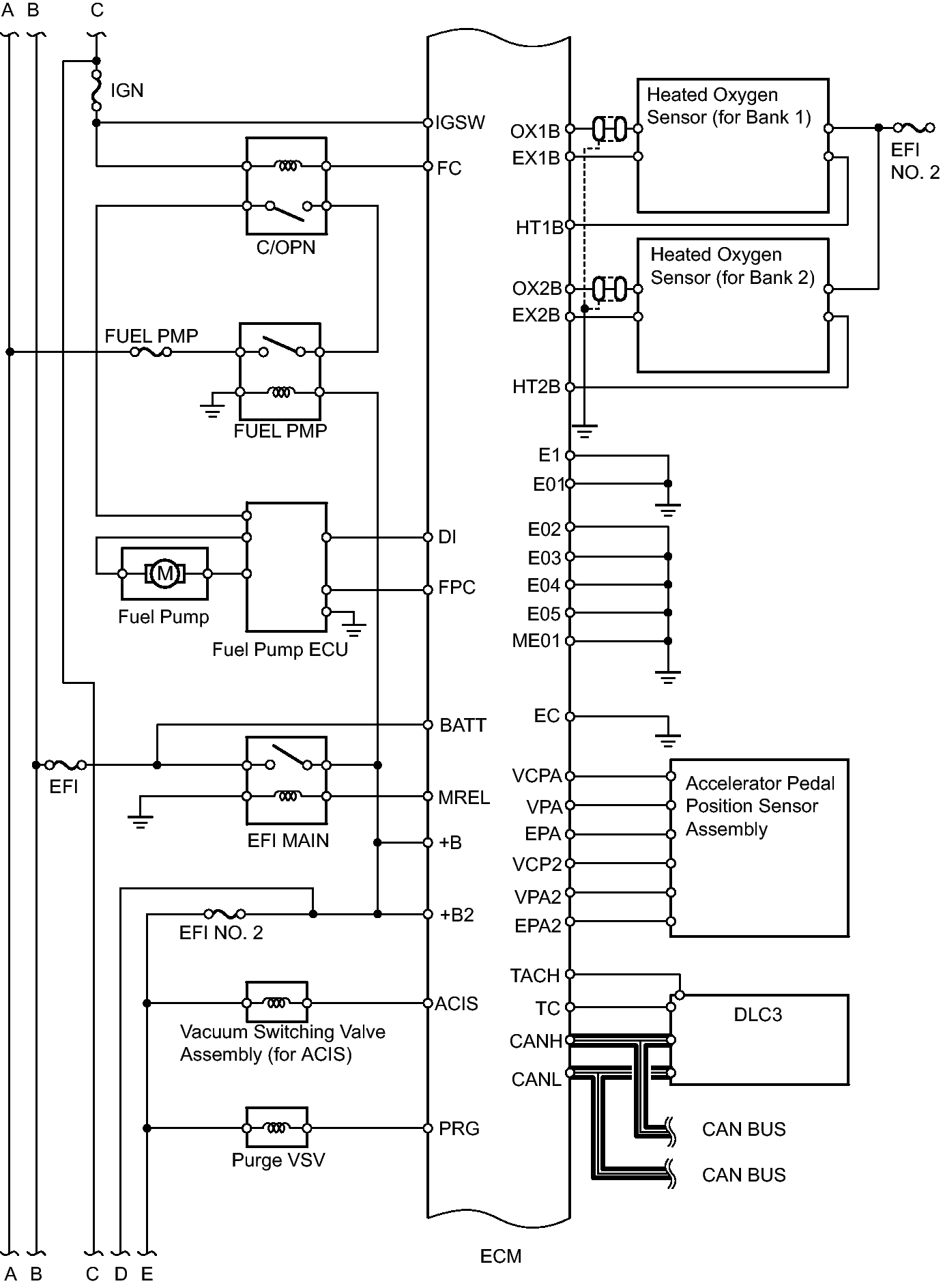

Fig 2: SFI System Wiring Diagram (2 Of 6)

GTY469644

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: SFI System Wiring Diagram (3 Of 6)

GTY460904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

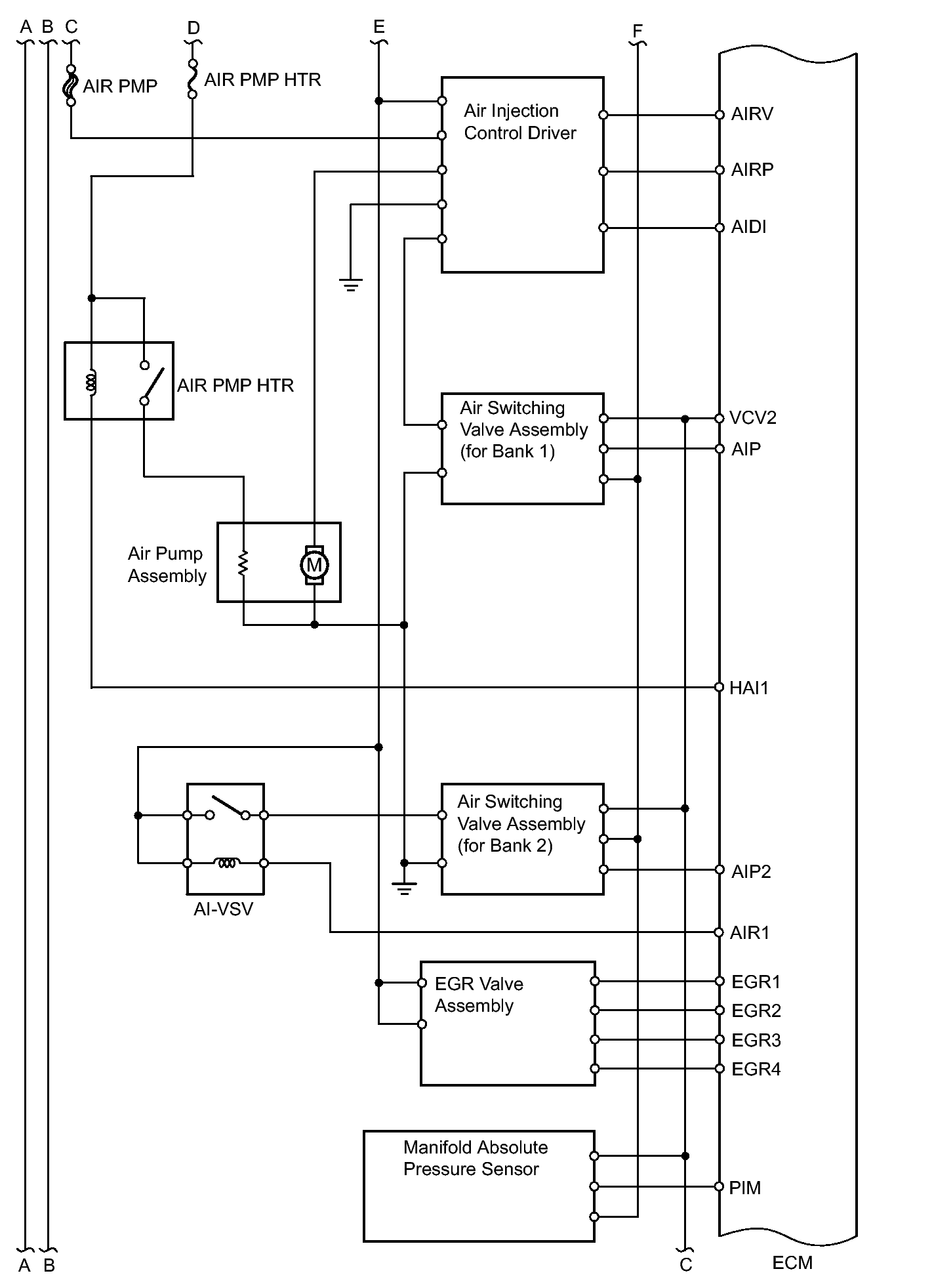

Fig 4: SFI System Wiring Diagram (4 Of 6)

GTY465919

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: SFI System Wiring Diagram (5 Of 6)

GTY272854

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

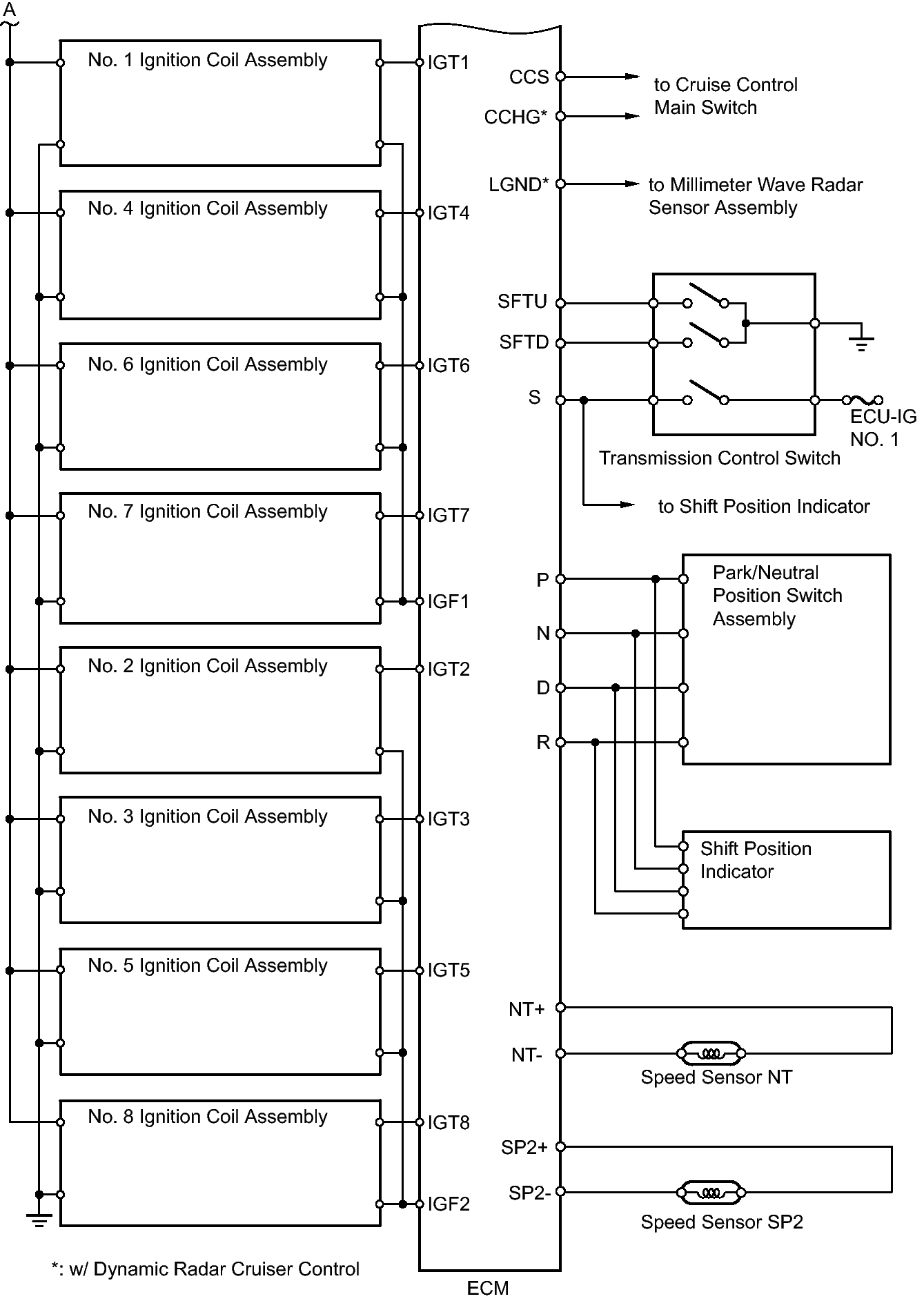

Fig 6: SFI System Wiring Diagram (6 Of 6)

GTY462103

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
