DTC P2118: Throttle Actuator Control Motor Current Range / Performance [08/2013 - ]: Wiring Diagram

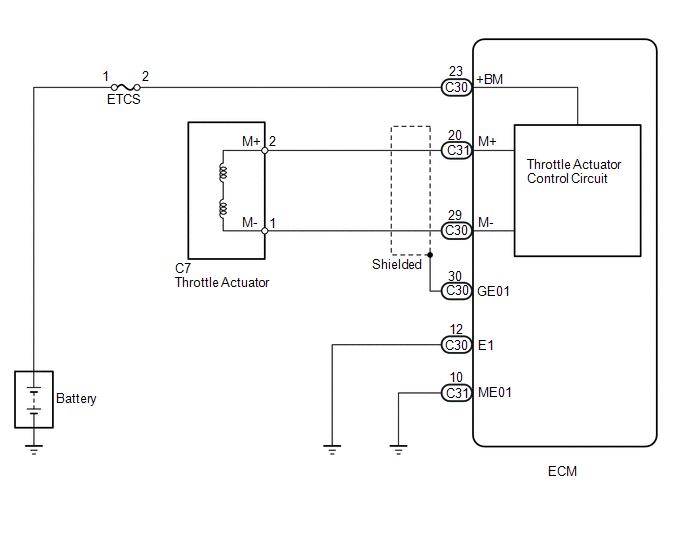

Fig 1: ECM Wiring Diagram

GTY266253

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
