Junction Block No. 3 Inner Circuit

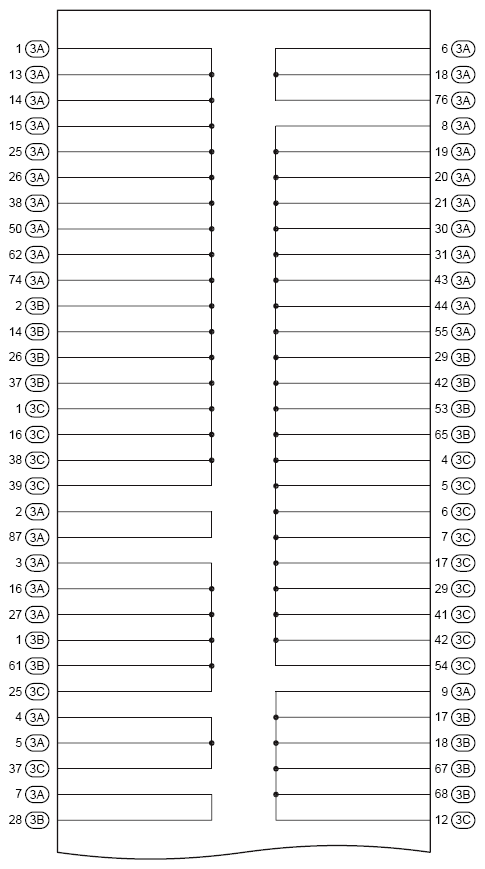

Fig 1: J/B No. 3 Inner Circuit Diagram (1 Of 4)
G09114427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

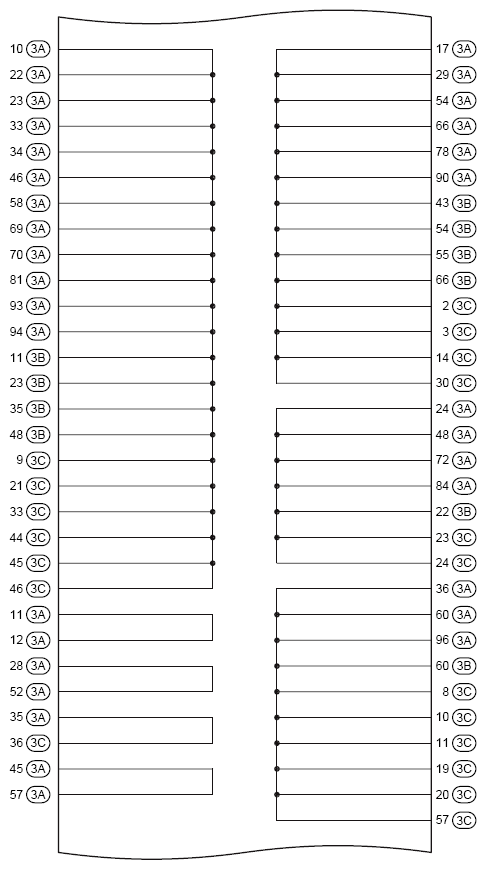

Fig 2: J/B No. 3 Inner Circuit Diagram (2 Of 4)
G09114428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

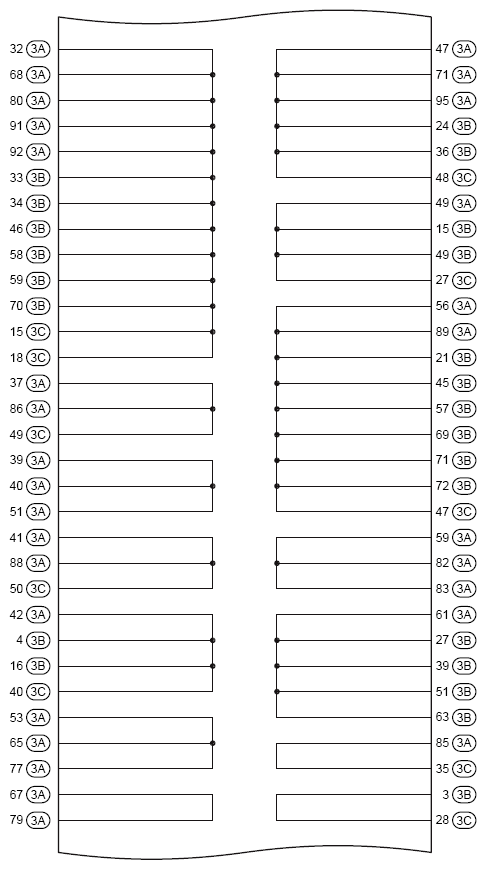

Fig 3: J/B No. 3 Inner Circuit Diagram (3 Of 4)
G09114429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

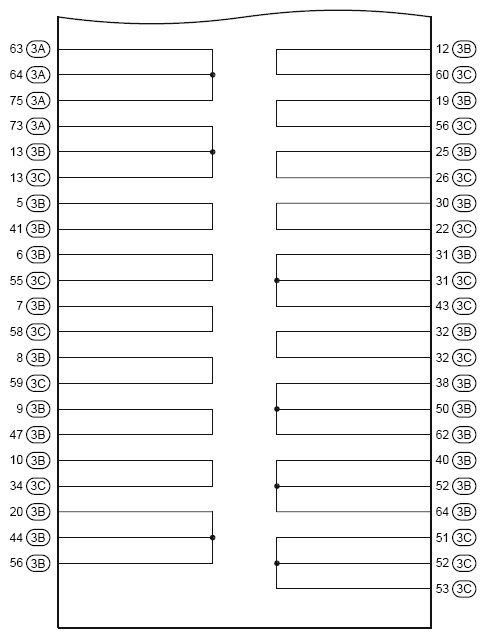

Fig 4: J/B No. 3 Inner Circuit Diagram (4 Of 4)
G09114430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
