System Diagram [08/2013 - ]

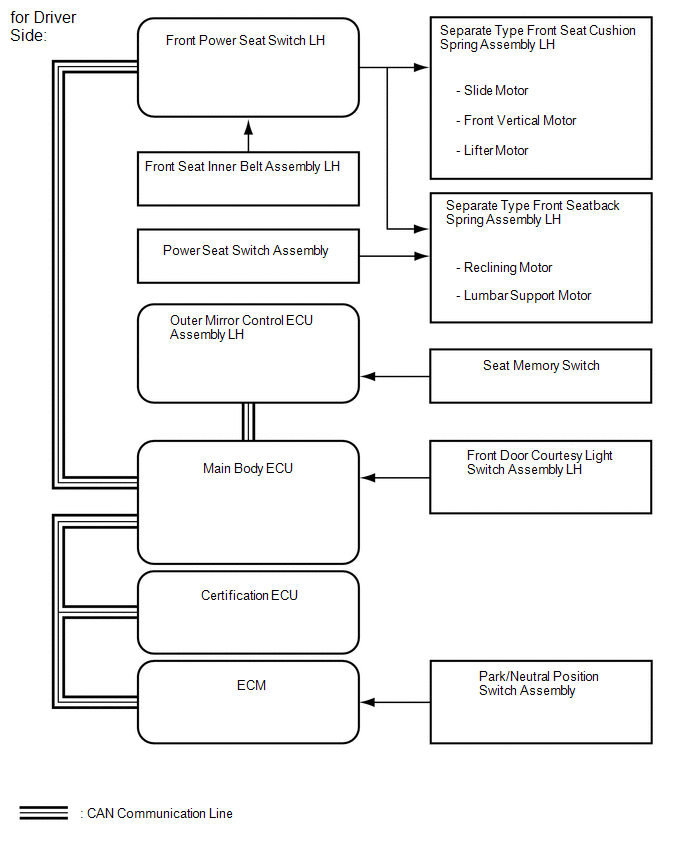

Fig 1: Front Power Seat Control System Diagram (Driver Side)

GTY259121

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
ECM	Main Body ECU	Shift position P signal Transmission information signal	CAN
Certification ECU	Main Body ECU	Memory call replay request signal Key identification No. 1 to No. 7 acquisition condition signal	CAN
Main Body ECU	Front Power Seat Switch LH	Driver seat position request signal Driver seat position data signal Driver's position buzzer request signal Driver seat return and away position data signal Shift position P signal Transmission information signal	CAN
Outer Mirror Control ECU Assembly LH	Main Body ECU	Seat memory switch M1 signal Seat memory switch M2 signal Seat memory switch SET signal	CAN

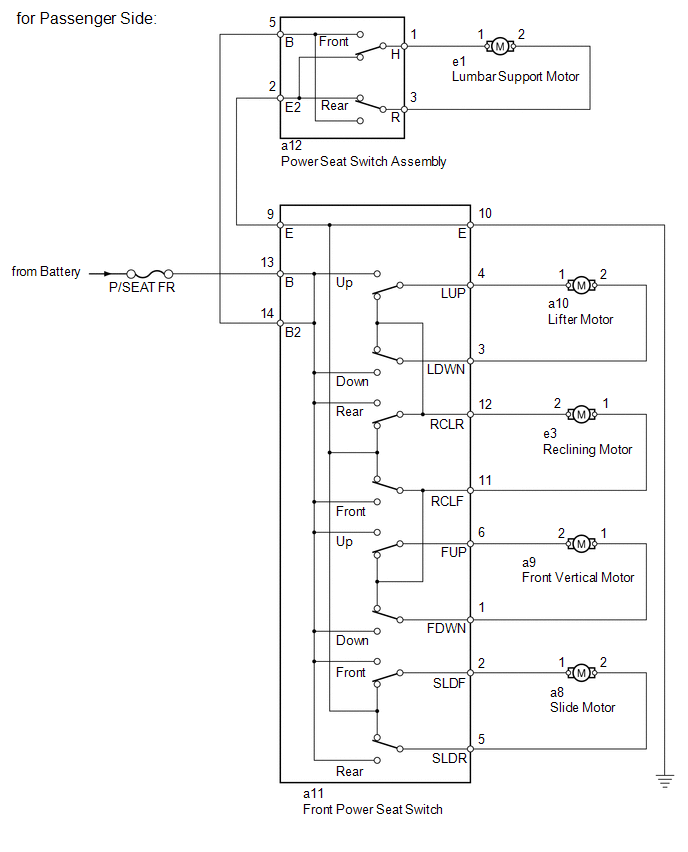

Fig 2: Front Power Seat Control System Diagram (Passenger Side)

GTY351845

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
