Rear Wiper does not Operate [08/2013 - ]: Wiring Diagram

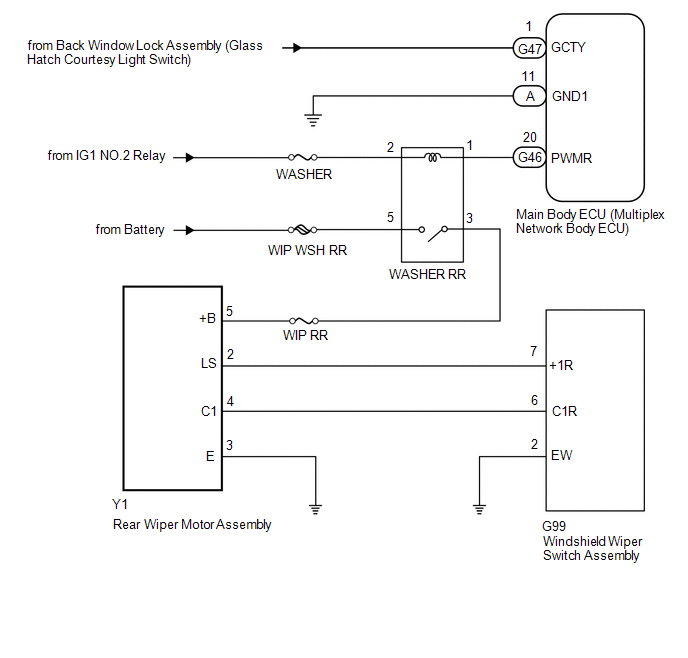

Fig 1: Rear Wiper Motor Wiring Diagram

GTY467805

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
