Microphone Circuit between Microphone and Navigation Receiver Assembly [08/2013 - ]: Wiring Diagram

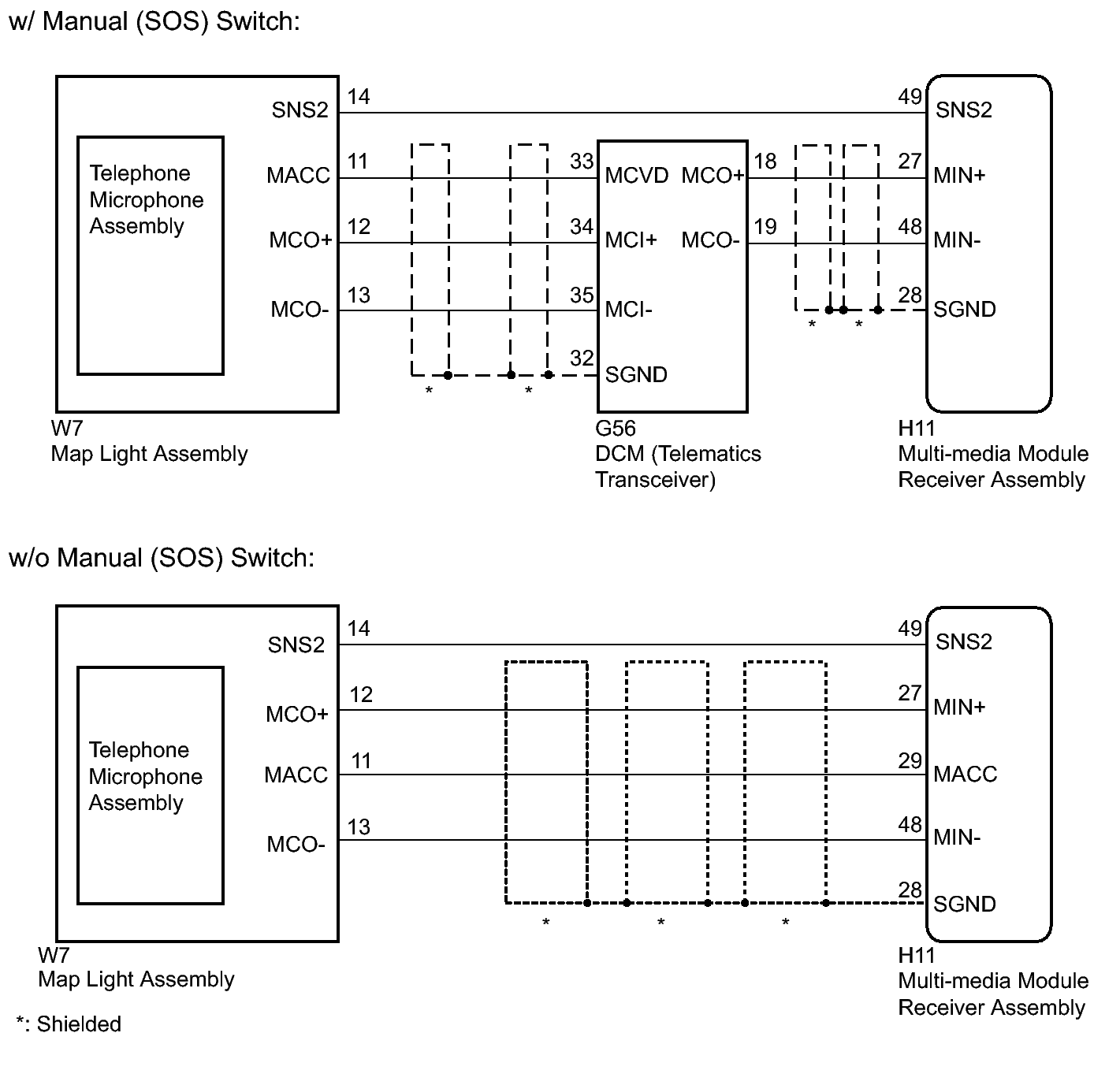

Fig 1: Map Light Assembly Wiring Diagram

GTY460828

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
