Removal [09/2014 - ]: Procedure

  1. REMOVE MASS AIR FLOW METER

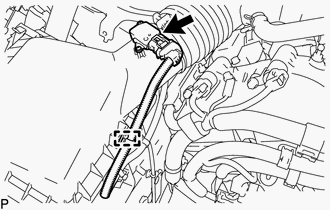

    1. Disconnect the clamp and mass air flow meter connector.
      GTY420030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

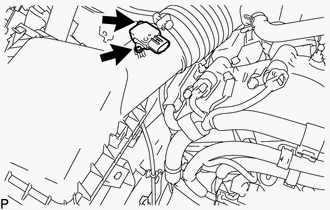

    2. Remove the 2 screws and mass air flow meter.
      GTY414815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
