Inspection [09/2014 - 10/2015]: Procedure
- INSPECT STEERING PAD SWITCH ASSEMBLY
- Inspect the pad switch.
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION

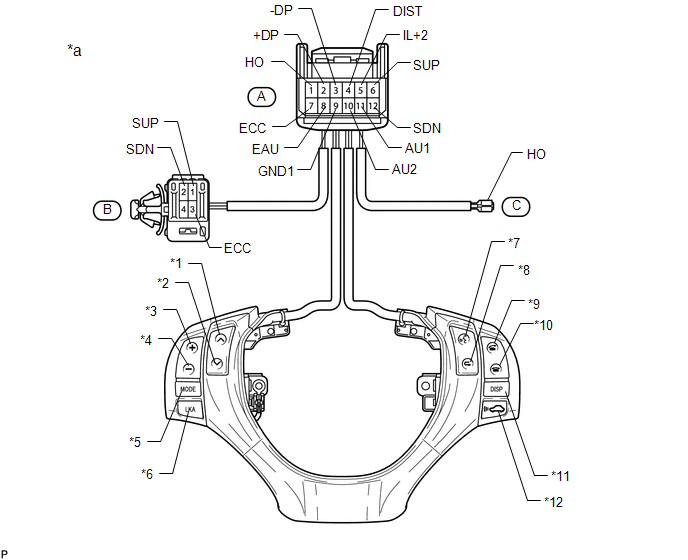

*1 Seek+ Switch *2 Seek- Switch *3 Volume+ Switch *4 Volume- Switch *5 MODE Switch *6 Lane Keeping Assist Switch *7 Voice Switch *8 Return Switch *9 Off Hook Switch *10 On Hook Switch *11 DISP Switch *12 Distance Control Switch *a Component without harness connected
(Steering Pad Switch Assembly)- - Standard Resistance
Tester Connection Switch Condition Specified Condition A11 (AU1) - A8 (EAU) No switch pushed 95 to 105 kΩ Seek+ switch pushed Below 2.5 Ω Seek- switch pushed 313 to 345 Ω Volume+ switch pushed 950 to 1050 Ω Volume- switch pushed 2955 to 3265 Ω A10 (AU2) - A8 (EAU) No switch pushed 95 to 105 kΩ MODE switch pushed Below 2.5 Ω Return Switch pushed 313 to 345 Ω On hook switch pushed 313 to 345 Ω Off hook switch pushed 950 to 1050 Ω Voice switch pushed 2955 to 3265 Ω A2 (+DP) - A3 (-DP) No switch pushed 1 MΩ DISP switch pushed Below 2.5 Ω A4 (DIST) - A7 (ECC) No switch pushed 1 MΩ Distance control switch pushed Below 2.5 Ω Lane Keeping Assist Switch pushed 228 to 252 Ω A1 (HO) - C (HO) Always Below 1 Ω A6 (SUP) - B1 (SUP) Always Below 1 Ω A12 (SDN) - B2 (SDN) Always Below 1 Ω A7 (ECC) - B3 (ECC) Always Below 1 Ω If the result is not as specified, replace the steering pad switch assembly.
- Measure the resistance according to the value(s) in the table below.
- Check the illumination.
- Connect the battery positive (+) lead to terminal A5 (IL+2) and the negative (-) lead to terminal A3 (-DP) of the steering pad switch assembly connector.
- Check that the switch illumination comes on.
OK
Steering pad switch illumination comes on.
If the result is not as specified, replace the steering pad switch assembly.
- Inspect the pad switch.
