Removal [10/2015 - ]: Procedure

WARNING: This page is about a different car, the 2020 Lexus GS 350, 2019 Lexus GS 350, 2018 Lexus GS 350, 2017 Lexus GS 350, and 2016 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE ROOM SIDE COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2

  3. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  5. REMOVE AIR CLEANER CAP AND HOSE

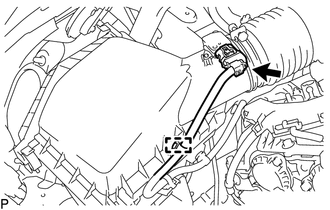

    1. Detach the wire harness clamp and disconnect the connector from the intake mass air flow meter sub-assembly.
      GTY658579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the clip and disconnect the No. 2 ventilation hose from the air cleaner hose.
    3. Loosen the hose clamp.
      GTY682650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Unfasten the 4 hook clamps, and then remove the bolt and air cleaner cap and hose.
  6. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
    1. Slide the hose clamp and disconnect the No. 5 water by-pass hose from the throttle body with motor assembly.
      GTY658578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector from the throttle body with motor assembly.
      GTY658576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 bolts, the throttle body with motor assembly and the gasket.
    4. Slide the hose clamp and disconnect the No. 4 water by-pass hose from the throttle body with motor assembly.
      GTY658577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
