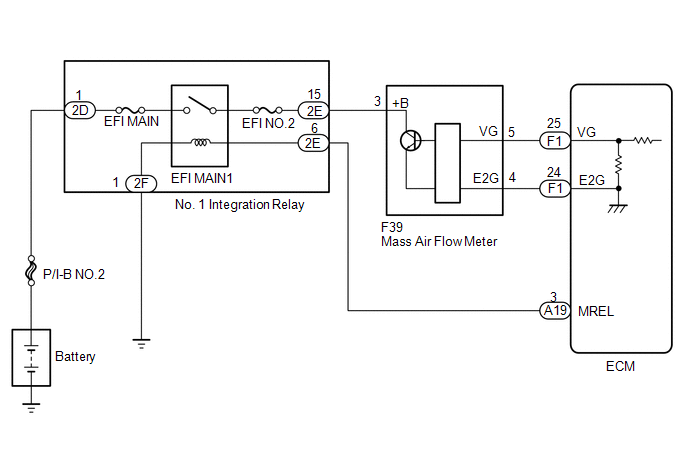

DTC P0102: Mass or Volume Air Flow Circuit Low Input; DTC P0103: Mass or Volume Air Flow Circuit High Input [09/2014 - 10/2015]: Wiring Diagram

GTY675610

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
