Removal [09/2014 - 10/2015]: Procedure

  1. REMOVE MASS AIR FLOW METER

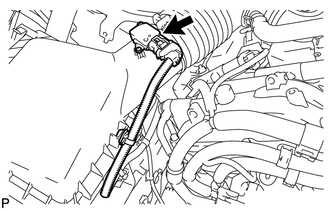

    1. Disconnect the mass air flow meter connector.
      GTY412635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and mass air flow meter.
      GTY412636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
