Components [09/2014 - 10/2015]: Illustration

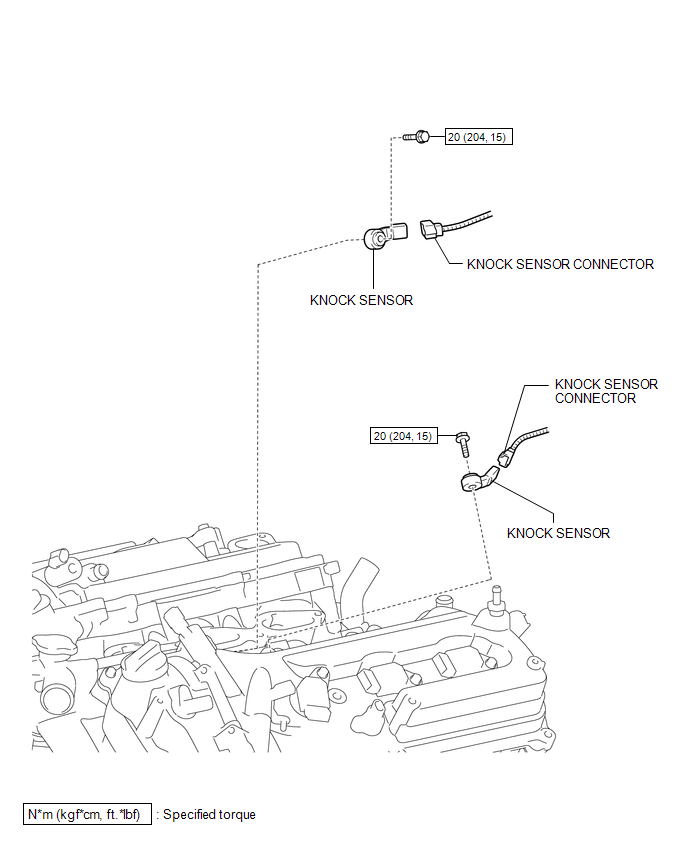

Fig 1: Knock Sensor Replacement Components With Torque Specifications

GTY668324

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
