Installation [09/2014 - 10/2015]: Procedure

HINT:

Perform "Inspection After Repairs" after replacing the spark plug (Refer to INITIALIZATION [09/2014 - 10/2015] ).

1. Install the 6 spark plugs.

   Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

HINT:

Perform "Inspection After Repairs" after replacing the ignition coil (Refer to INITIALIZATION [09/2014 - 10/2015] ).

1. Install the 6 ignition coils with the 6 bolts.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

2. Connect the 6 ignition coil connectors.
3. Connect the 2 wire harness brackets with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

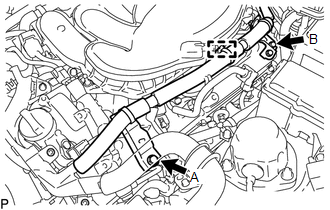

   for bolt A

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

   for bolt B

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

4. Connect the wire harness clamp.
5. Connect the wire harness with the 2 nuts.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

See step  2

See step  3

Refer to PROCEDURE - Step 120

Refer to PROCEDURE - Step 121

Refer to PROCEDURE - Step 119
