Components [09/2014 - 10/2015]: Illustration

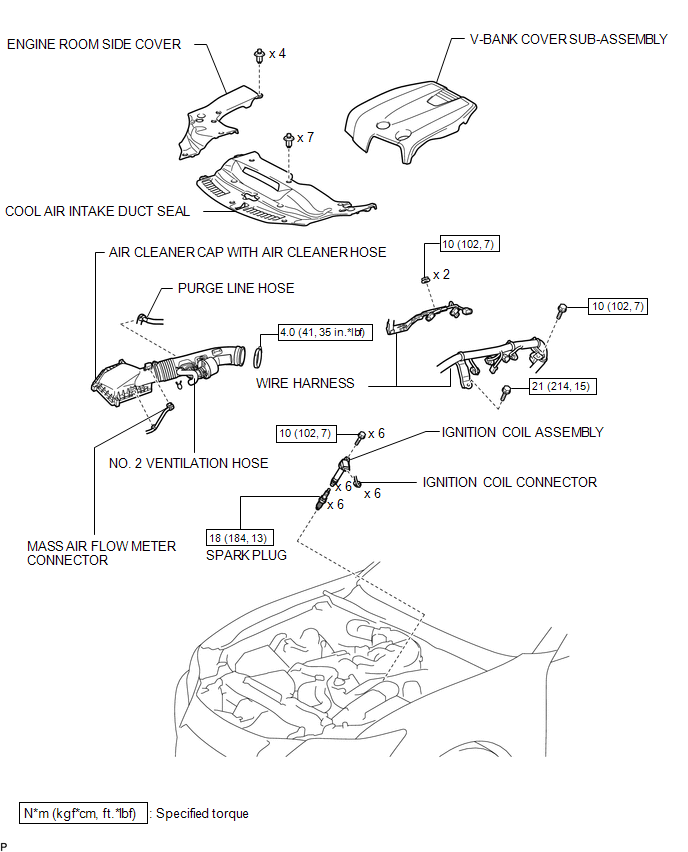

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications

GTY644016

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
