Components [09/2014 - 10/2015]: Illustration

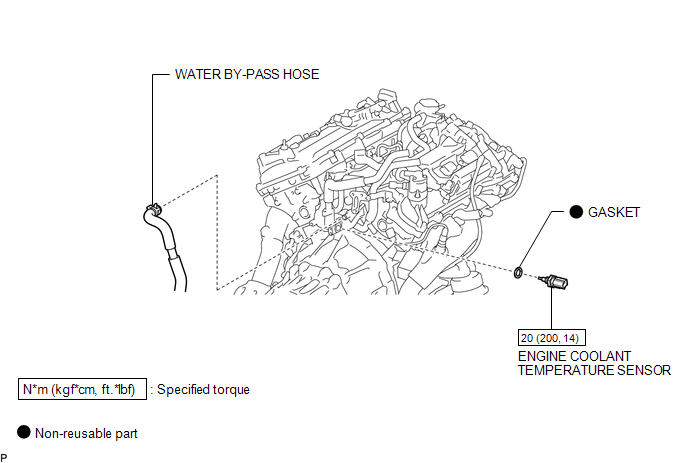

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications

GTY669419

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
