Components [09/2014 - 10/2015]: Illustration

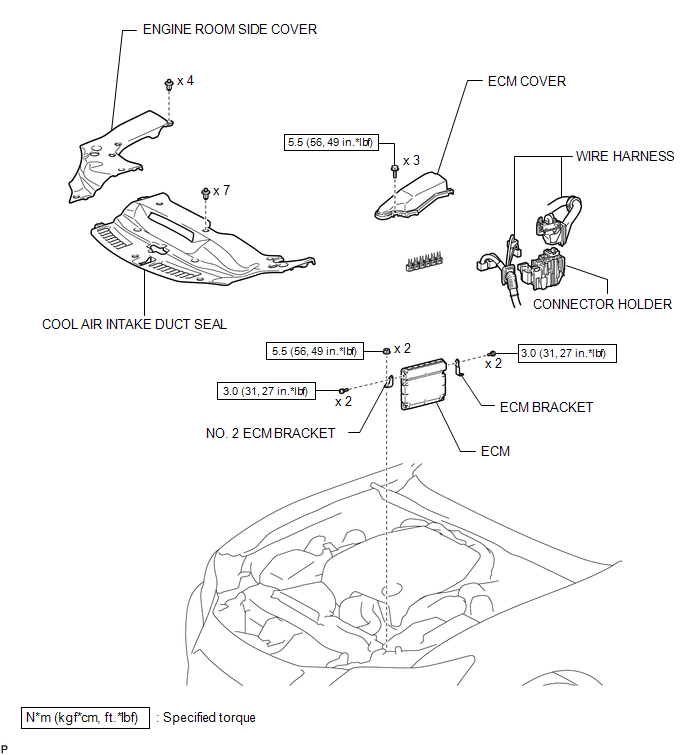

Fig 1: ECM Replacement Components With Torque Specifications

GTY630206

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
