Removal [09/2014 - 10/2015]: Procedure

  1. REMOVE COOLER COMPRESSOR ASSEMBLY
  2. REMOVE CRANKSHAFT POSITION SENSOR

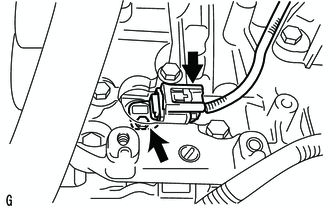

    1. Disconnect the crankshaft position sensor connector.
      GTY522242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crankshaft position sensor.
