Removal [09/2014 - 10/2015]: Procedure

  1. REMOVE POWER STEERING ECU ASSEMBLY

    (Refer to REMOVAL [09/2014 - ] )

  2. REMOVE ENGINE ROOM SIDE COVER

    Refer to PROCEDURE - Step 1

  3. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2

  4. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  5. DISCONNECT NO. 2 VENTILATION HOSE

    See step  7

  6. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    See step  8

  7. REMOVE BATTERY TRAY

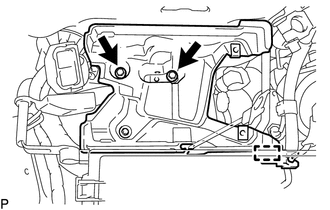

    1. Detach the fuel pipe clamp.
    2. Remove the 2 bolts and battery tray.
      GTY419952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. SEPARATE NO. 4 ENGINE WIRE

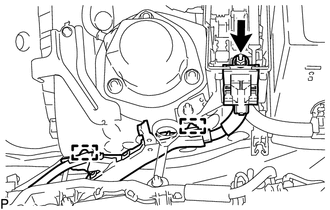

    1. Remove the No. 1 engine room relay block cover.
    2. Detach the 2 wire harness clamps.
    3. Remove the nut and separate the No. 4 engine wire from the No. 1 engine room junction block.
      GTY642648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT RELAY BLOCK ASSEMBLY

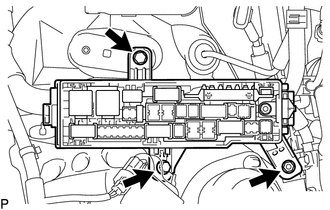

    1. Remove the 2 bolts and nut and disconnect the relay block assembly.
      GTY414437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE AIR FUEL RATIO SENSOR
    1. for Bank 1 Sensor 1:

      Disconnect the air fuel ratio sensor connector.

    2. Detach the 2 wire harness clamps.
      GTY396325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

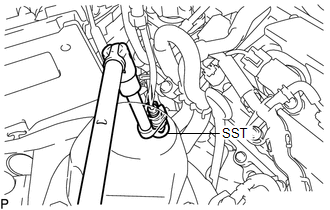

    3. Using SST, remove the air fuel ratio sensor.
      GTY653588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010
    4. for Bank 2 Sensor 1:

      Disconnect the air fuel ratio sensor connector.

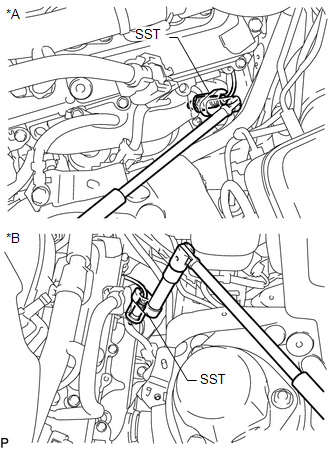

    5. Using SST, remove the air fuel ratio sensor.
      GTY622588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010
      TEXT IN ILLUSTRATION

      *A for 2WD
      *B for AWD
