Removal [09/2014 - 10/2015]: Procedure

  1. REMOVE ACCELERATOR PEDAL
    1. Detach the 2 claws and remove the accelerator pedal pad.
      GTY461616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and accelerator pedal.
      GTY461617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY
    NOTE:
    • Avoid physical shock to the accelerator pedal.
    • Do not disassemble the accelerator pedal assembly.
    • This accelerator pedal does not require lubrication.

      Do not apply oil or lubricant to the accelerator pedal sensor assembly.

      If applied, the accelerator pedal sensor assembly must be replaced.

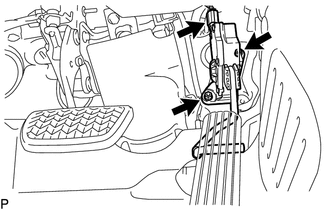

    1. Disconnect the accelerator pedal sensor connector.
      GTY414443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and accelerator pedal sensor assembly.
