VC Output Circuit [08/2014 - ]: Wiring Diagram

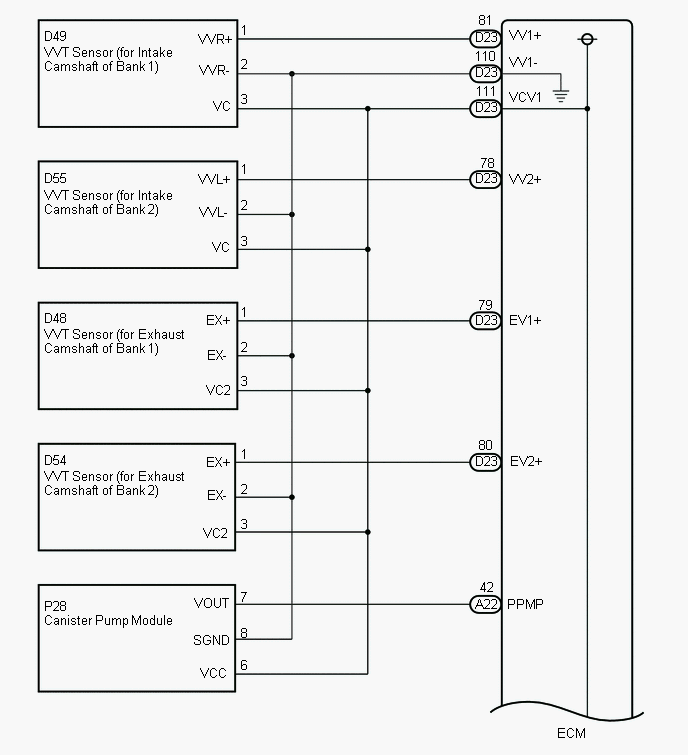

Fig 1: Identifying VC Output Circuit (1 Of 2)
GTY417882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

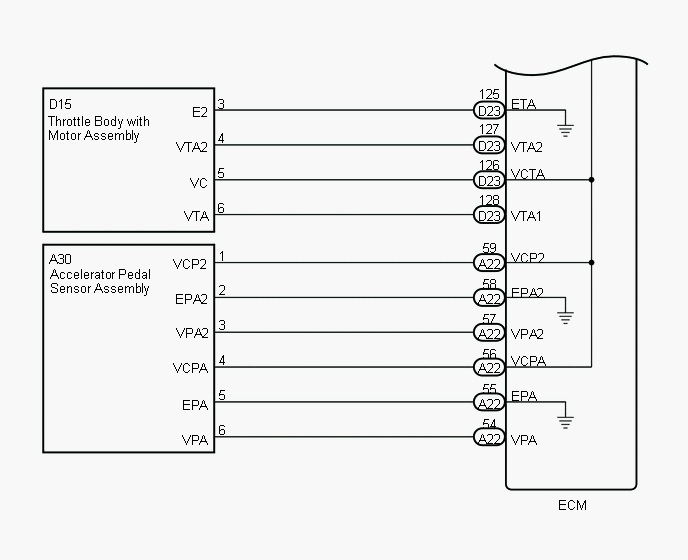

Fig 2: Identifying VC Output Circuit (2 Of 2)
GTY403419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
