Fuel Pump Control Circuit [08/2014 - ]: Wiring Diagram

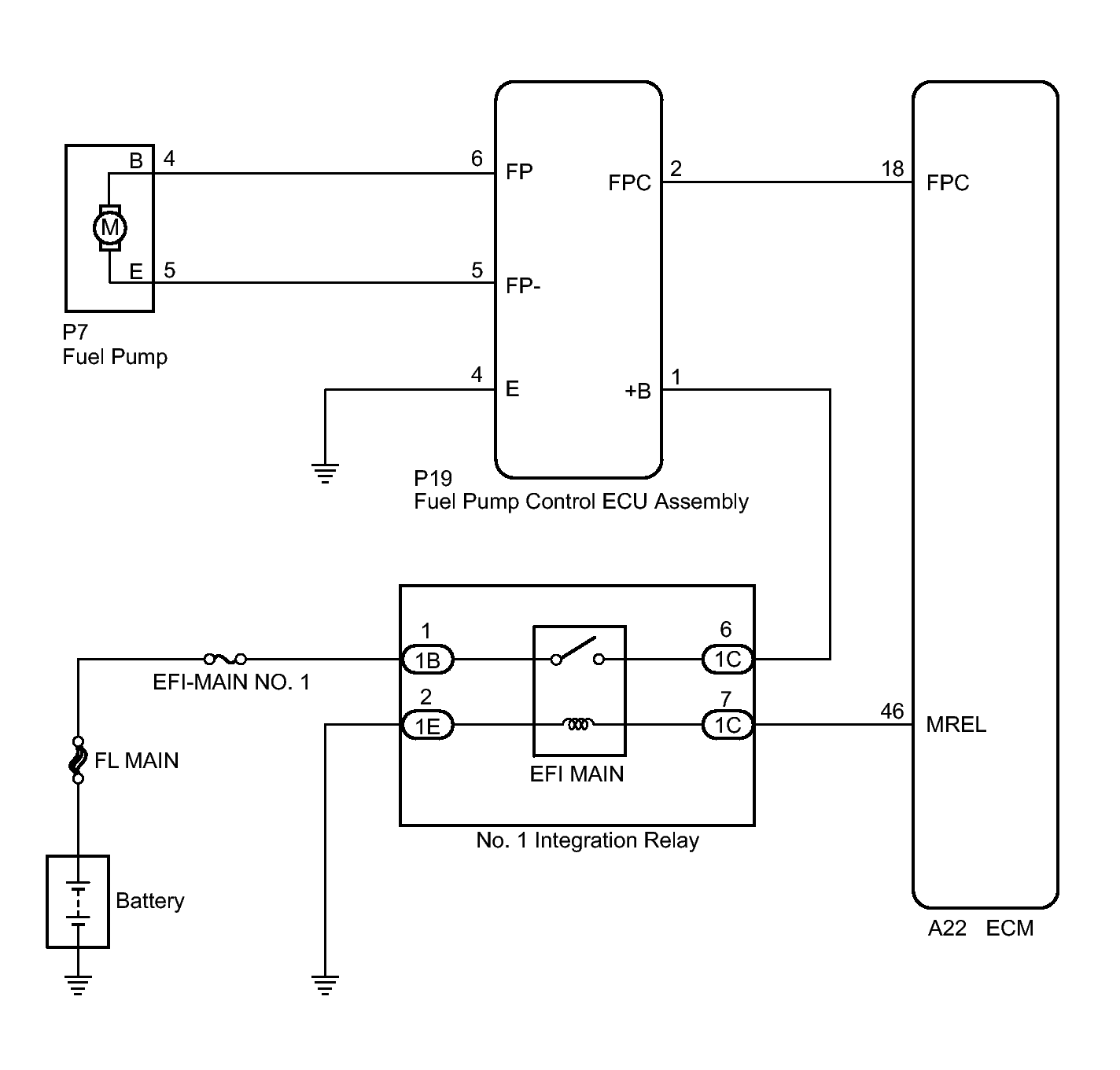

Fig 1: Identifying Fuel Pump Control Circuit

GTY398459

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
