Fuel Injector Circuit [08/2014 - ]: Wiring Diagram

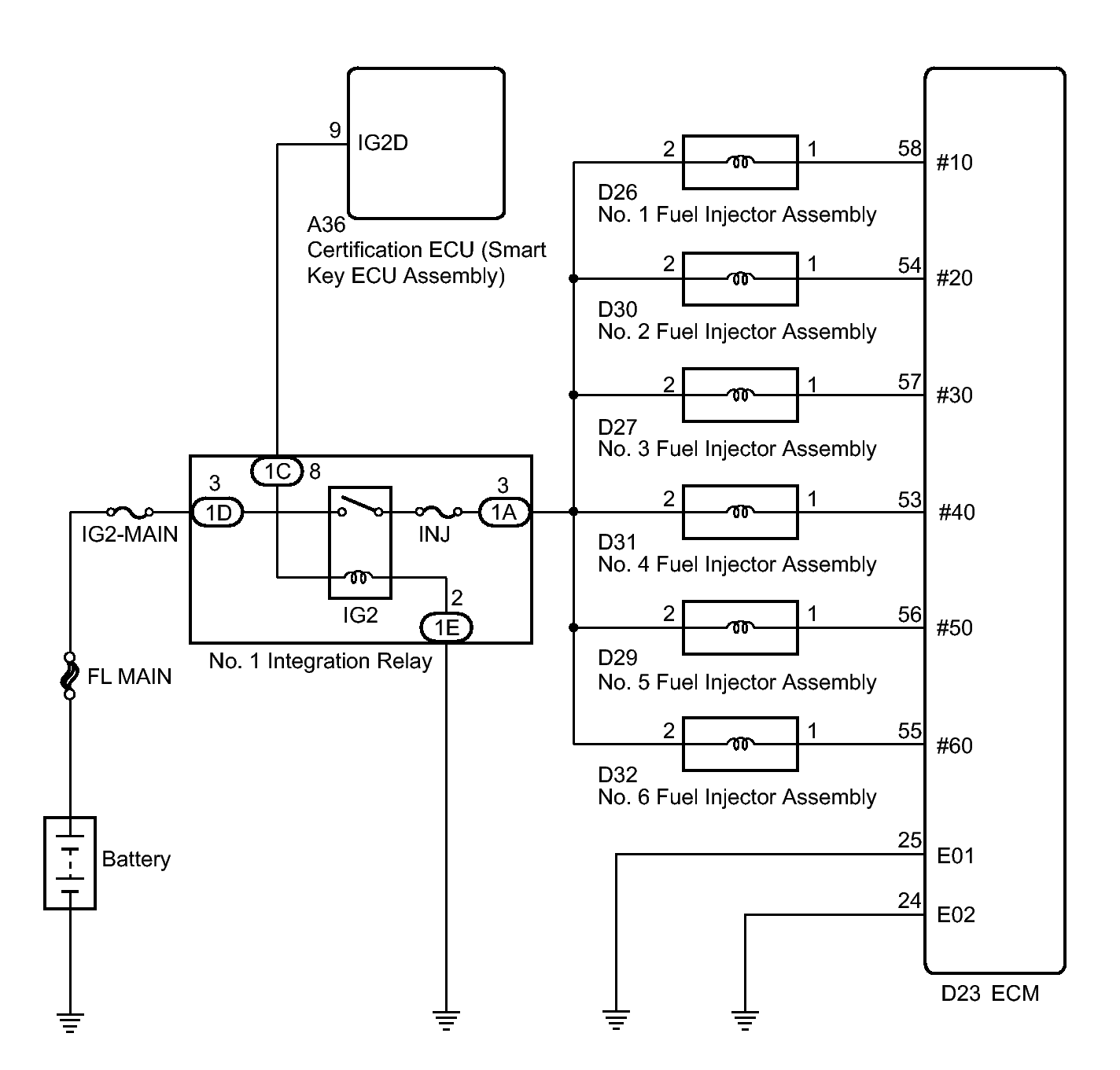

Fig 1: Identifying Fuel Injector Wiring Diagram

GTY419868

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
