ECM Power Source Circuit [08/2014 - ]: Wiring Diagram

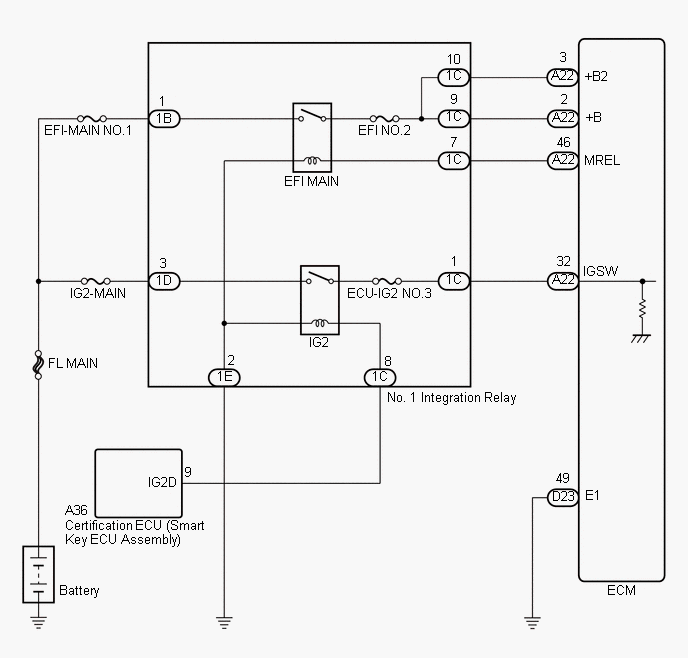

Fig 1: Identifying ECM Power Source Circuit

GTY417237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
