Air Intake Control Circuit [08/2014 - ]: Wiring Diagram

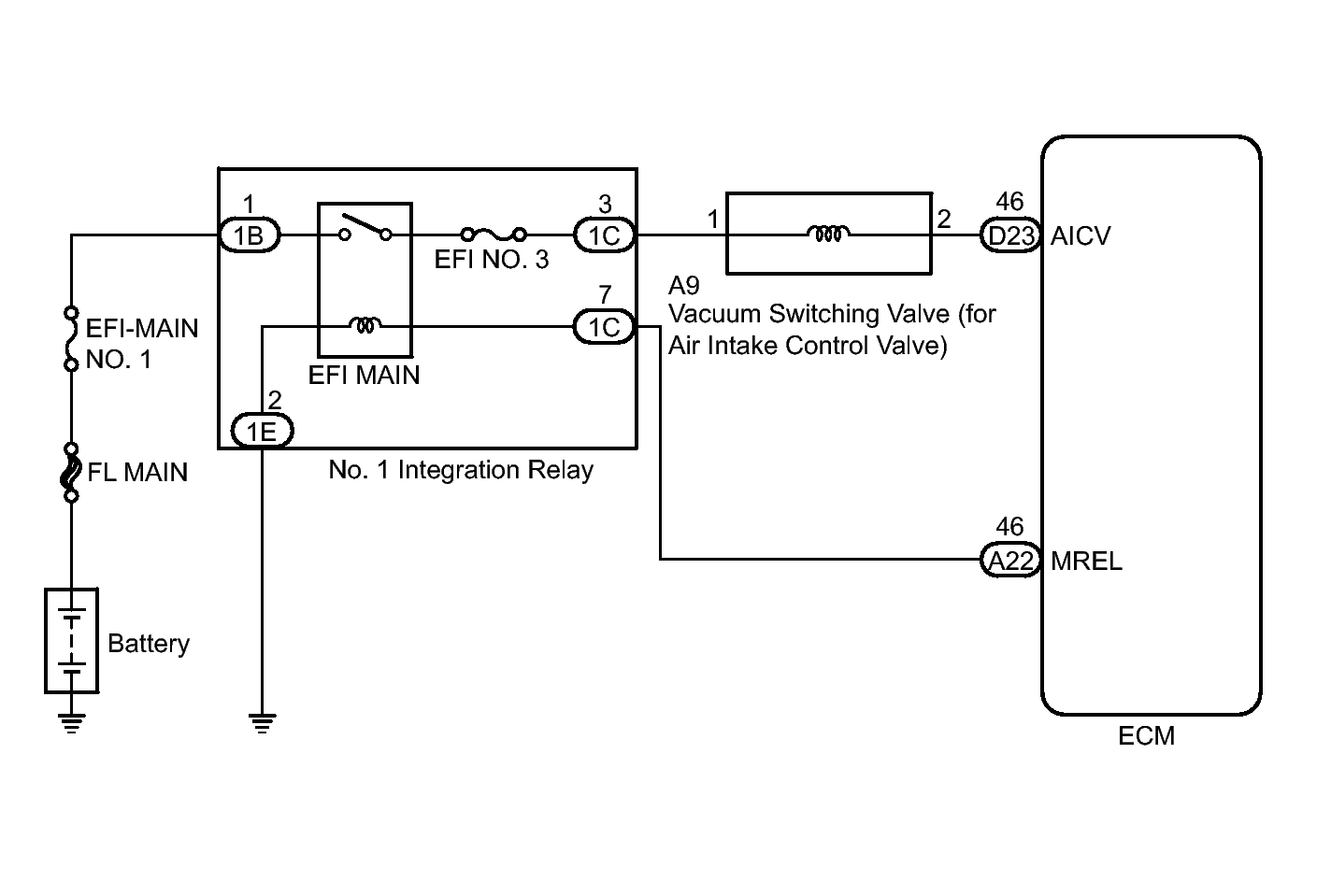

Fig 1: Identifying Vacuum Switching Valve Wiring Diagram

GTY399519

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
