Active Control Engine Mount System [08/2014 - ]: Wiring Diagram

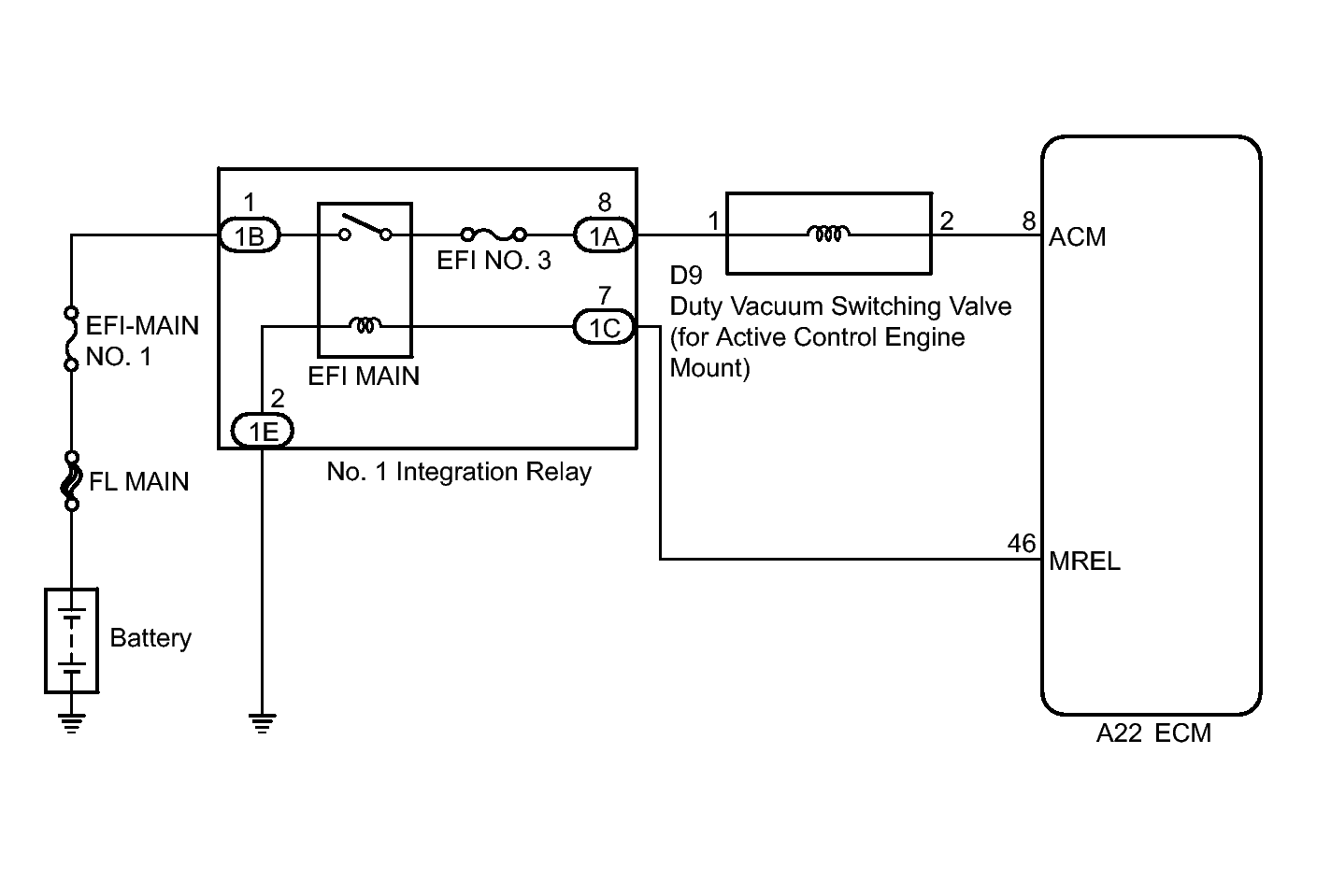

Fig 1: Identifying Engine Control Wiring Diagram

GTY396185

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
