Transmission Control Switch Circuit [08/2014 - ]: Procedure
- CHECK HARNESS AND CONNECTOR (BATTERY - TRANSMISSION CONTROL SWITCH)
- Disconnect the transmission control switch connector.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

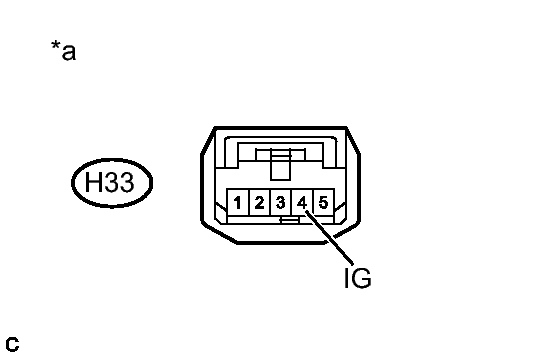

Tester Connection Condition Specified Condition H33-4 (IG) - Body ground Engine switch on (IG) 11 to 14 V Engine switch off Below 1 V TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Transmission Control Switch)
NG → CHECK POWER SOURCE CIRCUIT
OK: Go to next step
- Disconnect the transmission control switch connector.
- CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

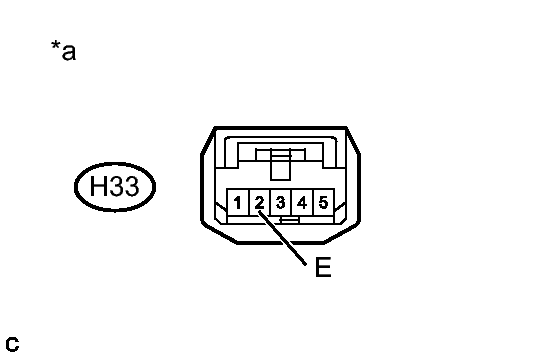

Tester Connection Condition Specified Condition H33-2 (E) - Body ground Always Below 1 Ω TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Transmission Control Switch)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Measure the resistance according to the value(s) in the table below.
- INSPECT LOWER SHIFT LEVER ASSEMBLY (TRANSMISSION CONTROL SWITCH)
- Measure the resistance between each terminal of the transmission control switch when the shift lever is moved to each position.
Standard Resistance
Tester Connection Condition Specified Condition H33-4 (IG) - H33-5 (S) Shift lever in S, "+" or "-" Below 1 Ω Shift lever not in S, "+" or "-" 10 kΩ or higher H33-3 (SFTU) - H33-2 (E) Shift lever held in "+"
(Up-shift)Below 1 Ω Shift lever not held in "+" 10 kΩ or higher H33-1 (SFTD) - H33-2 (E) Shift lever held in "-"

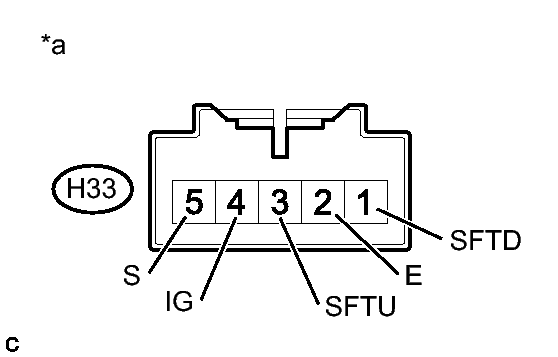

(Down-shift)Below 1 Ω Shift lever not held in "-" 10 kΩ or higher TEXT IN ILLUSTRATION*a Component without harness connected
(Transmission Control Switch)
NG → See step 6
OK: Go to next step
- Measure the resistance between each terminal of the transmission control switch when the shift lever is moved to each position.
- CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)
- Connect the transmission control switch connector.
- Disconnect the ECM connector.
- Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition A22-37 (S) - Body ground - Engine switch on (IG)
- Shift lever in S, "+" or "-"
11 to 14 V A22-37 (S) - Body ground - Engine switch on (IG)
- Shift lever not in S, "+" or "-"
Below 1 V - Turn the engine switch off.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A22-34 (SFTU) - Body ground Shift lever held in "+"
(Up-shift)Below 1 Ω Shift lever not held in "+" 10 kΩ or higher A22-50 (SFTD) - Body ground Shift lever held in "-"

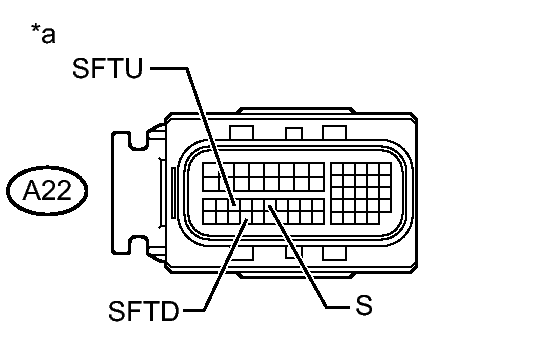

(Down-shift)Below 1 Ω Shift lever not held in "-" 10 kΩ or higher TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to ECM)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 5
- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [08/2014 - ]
- REPLACE LOWER SHIFT LEVER ASSEMBLY (TRANSMISSION CONTROL SWITCH). Refer to COMPONENTS [08/2014 - ]
