Pre-collision System Cancel Switch Circuit [08/2014 - ]: Procedure
- INSPECT PRE-COLLISION SYSTEM CANCEL SWITCH ASSEMBLY
- Remove the pre-collision system cancel switch assembly. Refer to REMOVAL [08/2014 - ]
.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

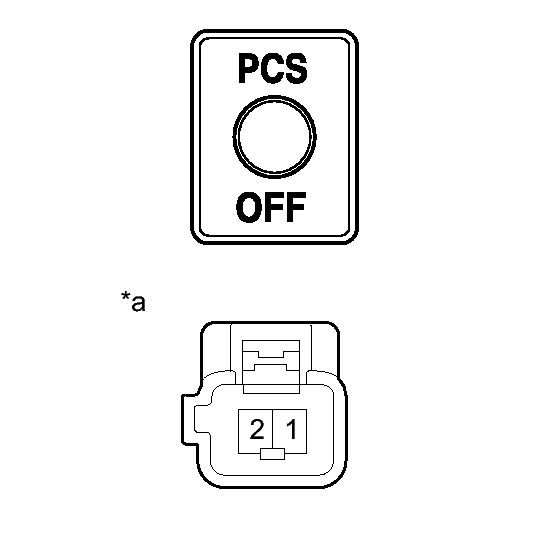

Tester Connection Condition Specified Condition 1 - 2 Pressed Below 1 Ω Not pressed 10 kΩ or higher TEXT IN ILLUSTRATION*a Component without harness connected
(Pre-collision system cancel switch assembly)
NG → See step 4
OK: Go to next step
- Remove the pre-collision system cancel switch assembly. Refer to REMOVAL [08/2014 - ]
.
- CHECK HARNESS AND CONNECTOR (PRE-COLLISION SYSTEM CANCEL SWITCH ASSEMBLY - DRIVING SUPPORT ECU ASSEMBLY)
- Disconnect the K1 pre-collision system cancel switch assembly connector.
- Disconnect the H75 driving support ECU assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition K1-1 - H75-5 (PBSW) Always Below 1 Ω K1-1 or H75-5 (PBSW) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (PRE-COLLISION SYSTEM CANCEL SWITCH ASSEMBLY - BODY GROUND)
- Disconnect the K1 pre-collision system cancel switch assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition K1-2 - Body ground Always Below 1 Ω
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 5
- REPLACE PRE-COLLISION SYSTEM CANCEL SWITCH ASSEMBLY. Refer to COMPONENTS [08/2014 - ]
- REPLACE DRIVING SUPPORT ECU ASSEMBLY. Refer to COMPONENTS [08/2014 - ]
