Rear Power Window RH Auto Up / Down Function does not Operate with Rear Power Window Switch RH [08/2014 - ]: Wiring Diagram

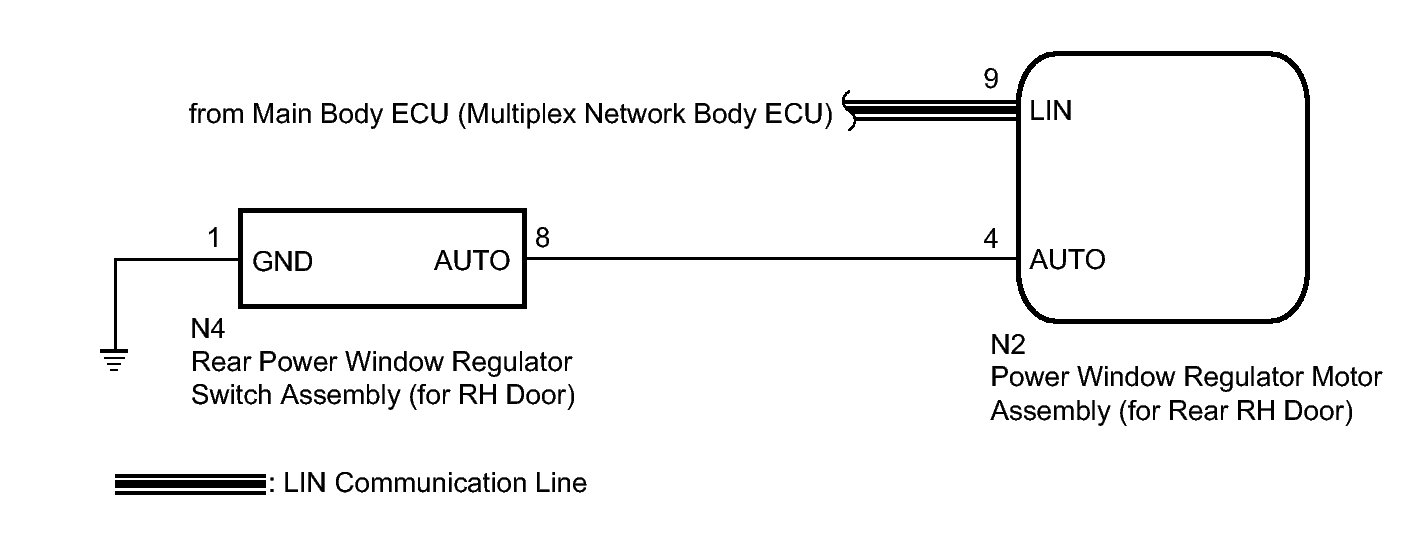

Fig 1: Identifying Power Window Control System Wiring Diagram
GTY406797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
