Home >> Lexus >> 2015 >> ES 350 >> Repair and Diagnosis (Single Page) >> Body & Frame >> Windows >> Power Window Control System - Diagnostics & Symptom Tests >> Power Window Control System >> Symptom Test >> Rear Power Window LH Auto Up / Down Function does not Operate with Rear Power Window Switch LH [08/2014 - ] >> Wiring Diagram

Rear Power Window LH Auto Up / Down Function does not Operate with Rear Power Window Switch LH [08/2014 - ]: Wiring Diagram

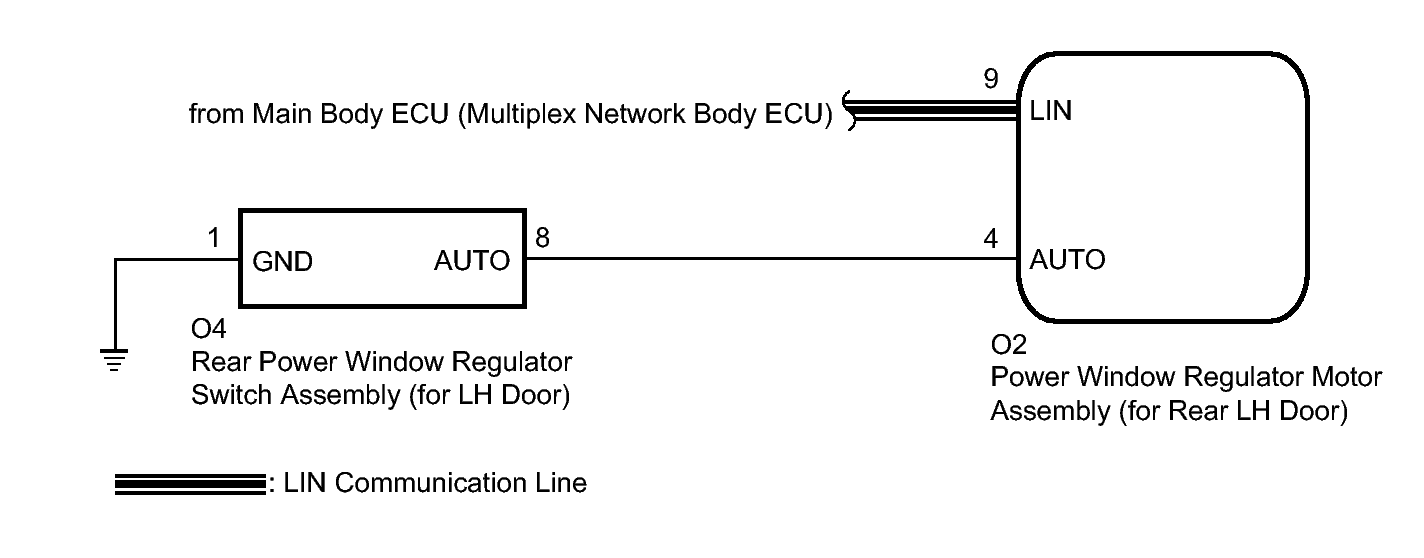

Fig 1: Identifying Power Window Control System Wiring Diagram
GTY406798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
