Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [08/2014 - ]: Wiring Diagram

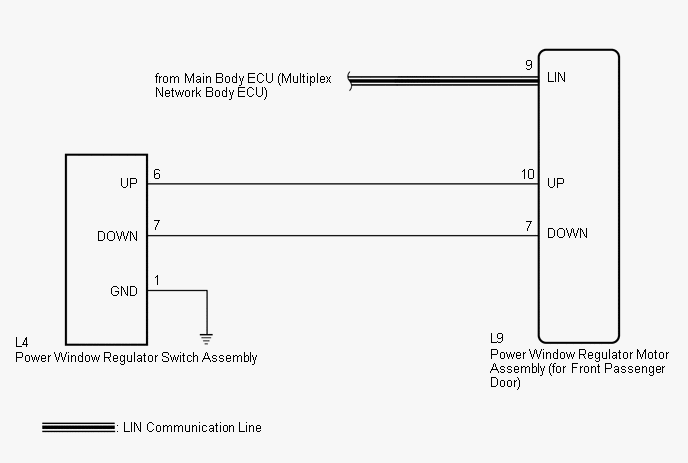

Fig 1: Identifying Front Passenger Power Window Wiring Diagram
GTY410339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
