Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch [08/2014 - ]: Wiring Diagram

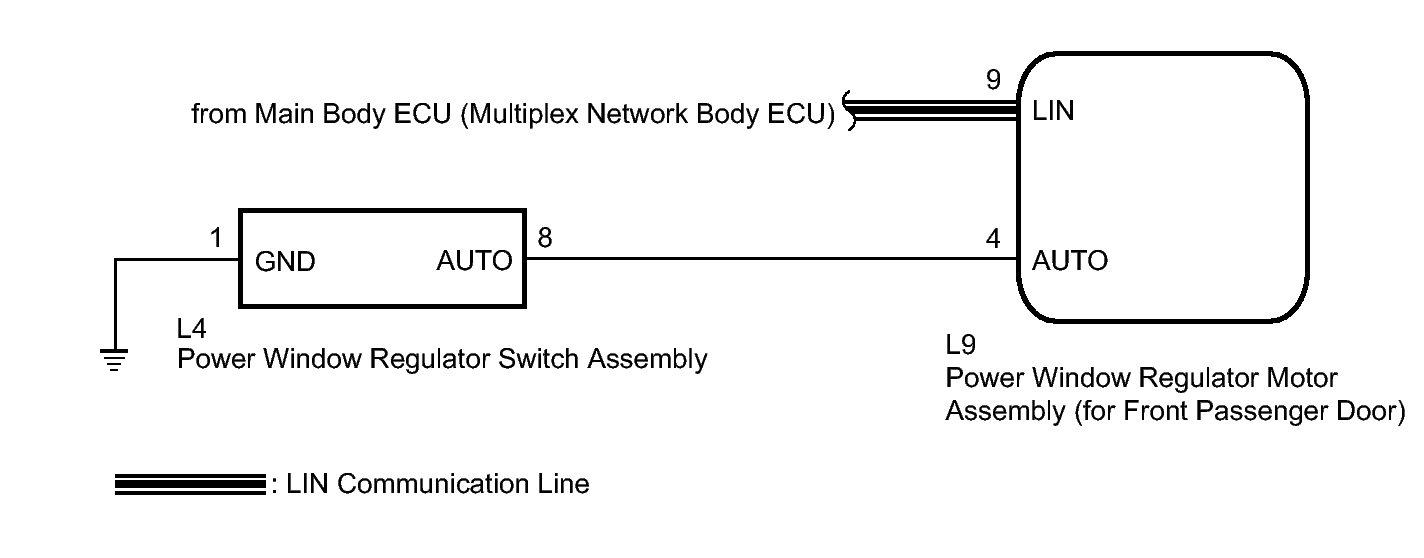

Fig 1: Identifying Power Window Control System Wiring Diagram
GTY406799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
