Driver Side Power Window does not Operate with Power Window Master Switch [08/2014 - ]: Wiring Diagram

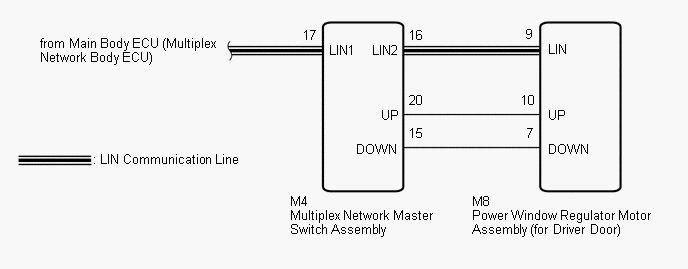

Fig 1: Identifying Power Window Master Switch Wiring Diagram
GTY396060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
