Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch [08/2014 - ]: Wiring Diagram

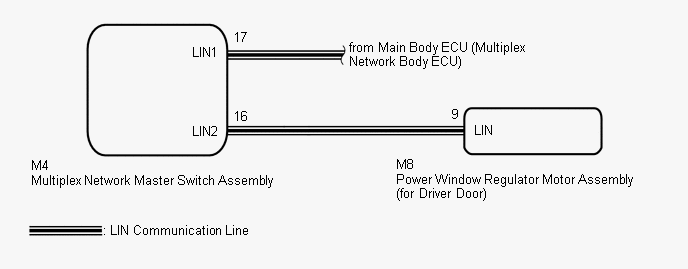

Fig 1: Identifying Power Window Control System Wiring Diagram
GTY400903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
