Navigation Receiver Assembly Power Source Circuit [08/2014 - ]: Wiring Diagram

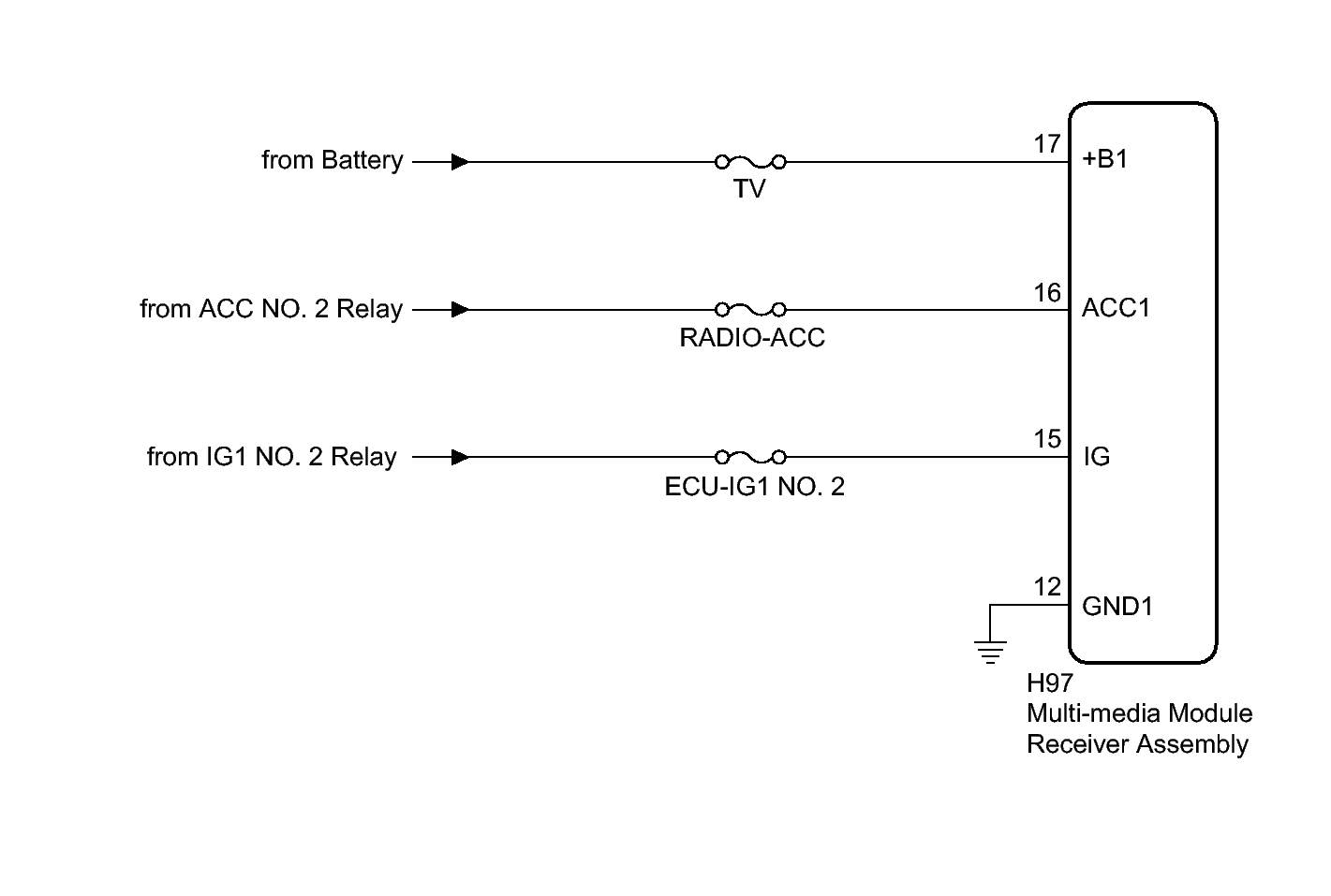

Fig 1: Radio Receiver Power Source Circuit Wiring Diagram

GTY499795

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
