Microphone Circuit between Microphone and Navigation Receiver Assembly [08/2014 - ]: Wiring Diagram

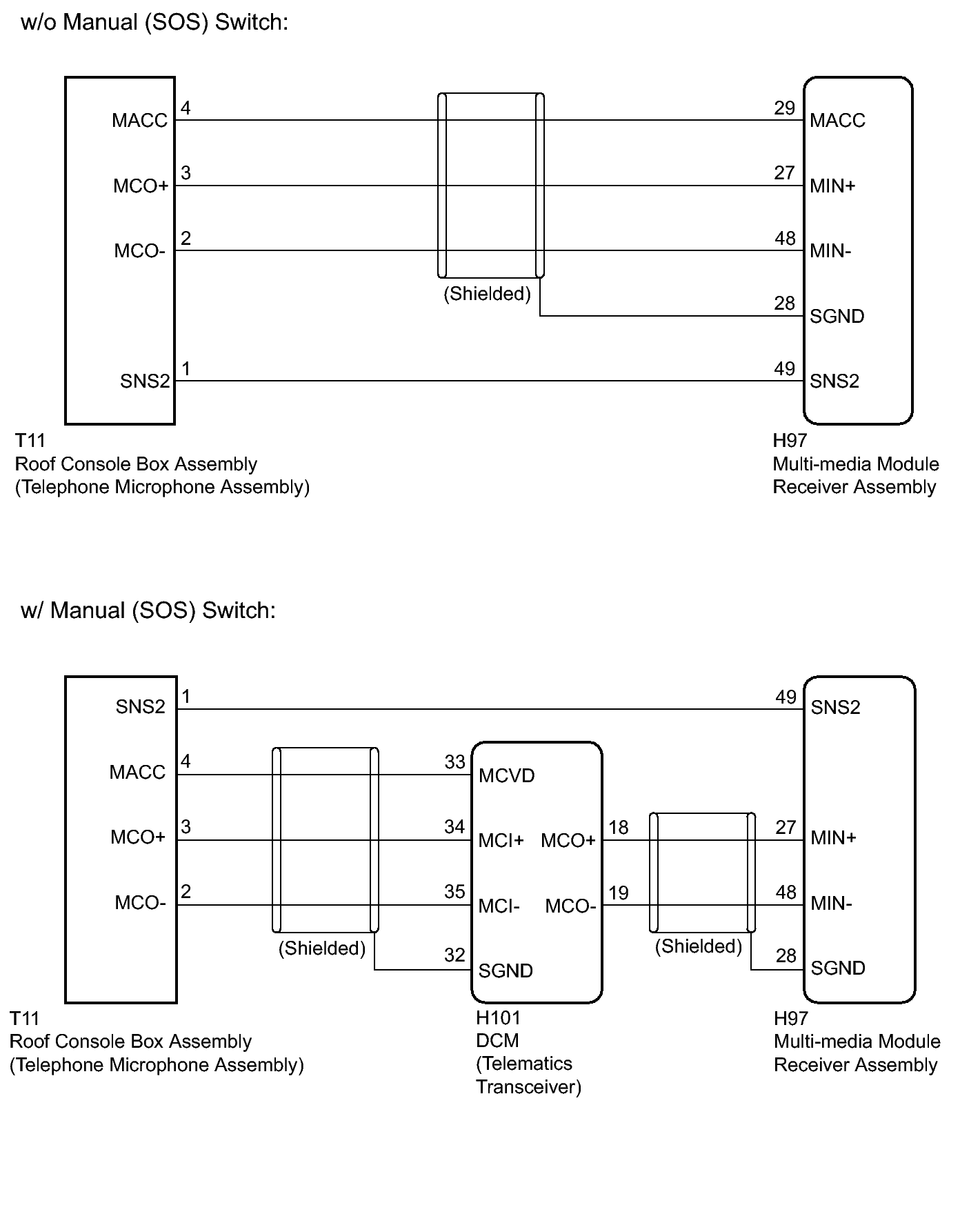

Fig 1: Microphone Circuit Wiring Diagram

GTY516380

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
