Display Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter [08/2014 - ]: Wiring Diagram

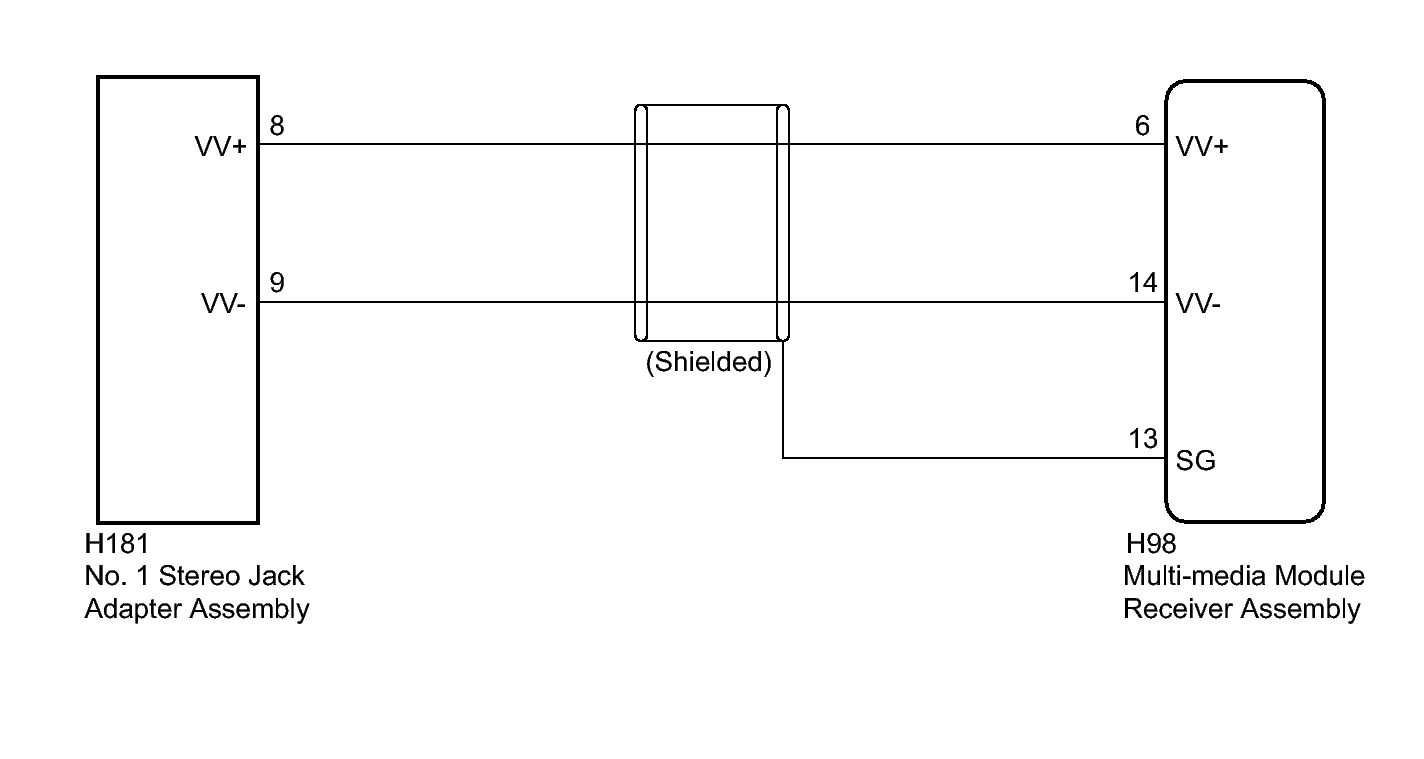

Fig 1: Display Signal Circuit Wiring Diagram
GTY500065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
