System Diagram [08/2014 - ]

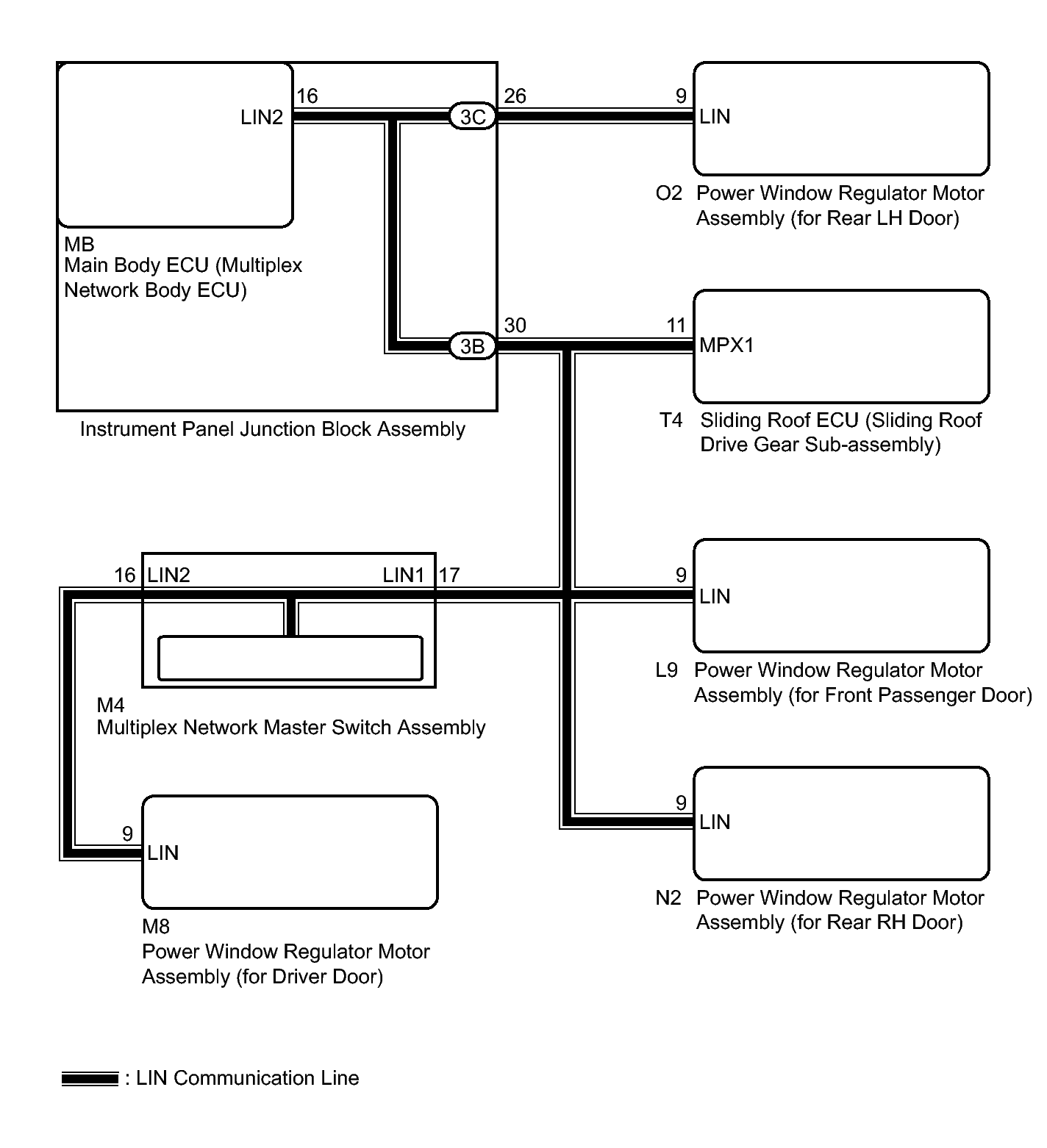

  1. DOOR BUS LINES
    Fig 1: LIN Communication System Diagram (Door Bus Lines)
    GTY411086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

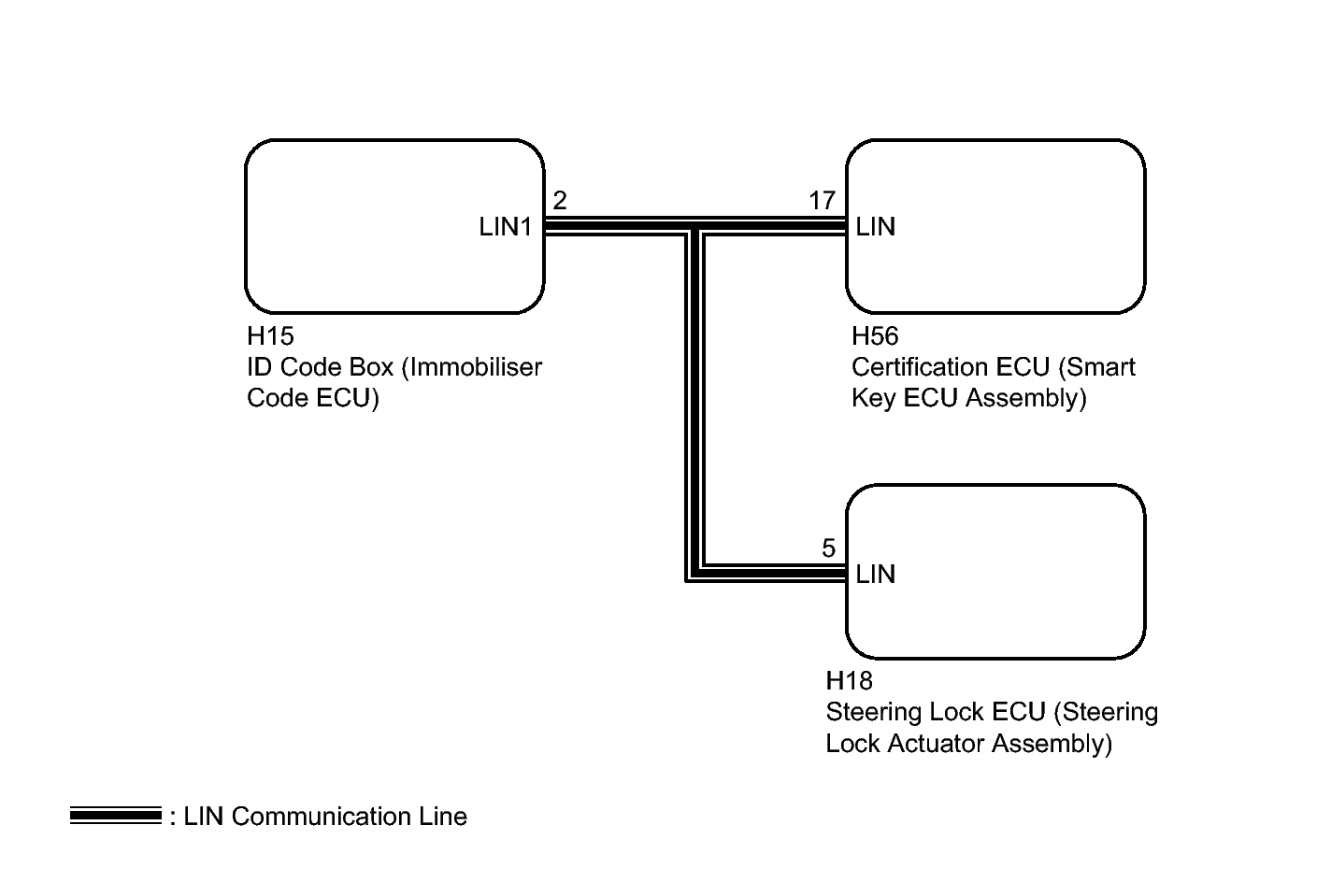

  2. CERTIFICATION BUS LINES
    Fig 2: LIN Communication System Diagram (Certification Bus Lines)
    GTY409422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
