New Key cannot be Registered [08/2014 - ]: Wiring Diagram

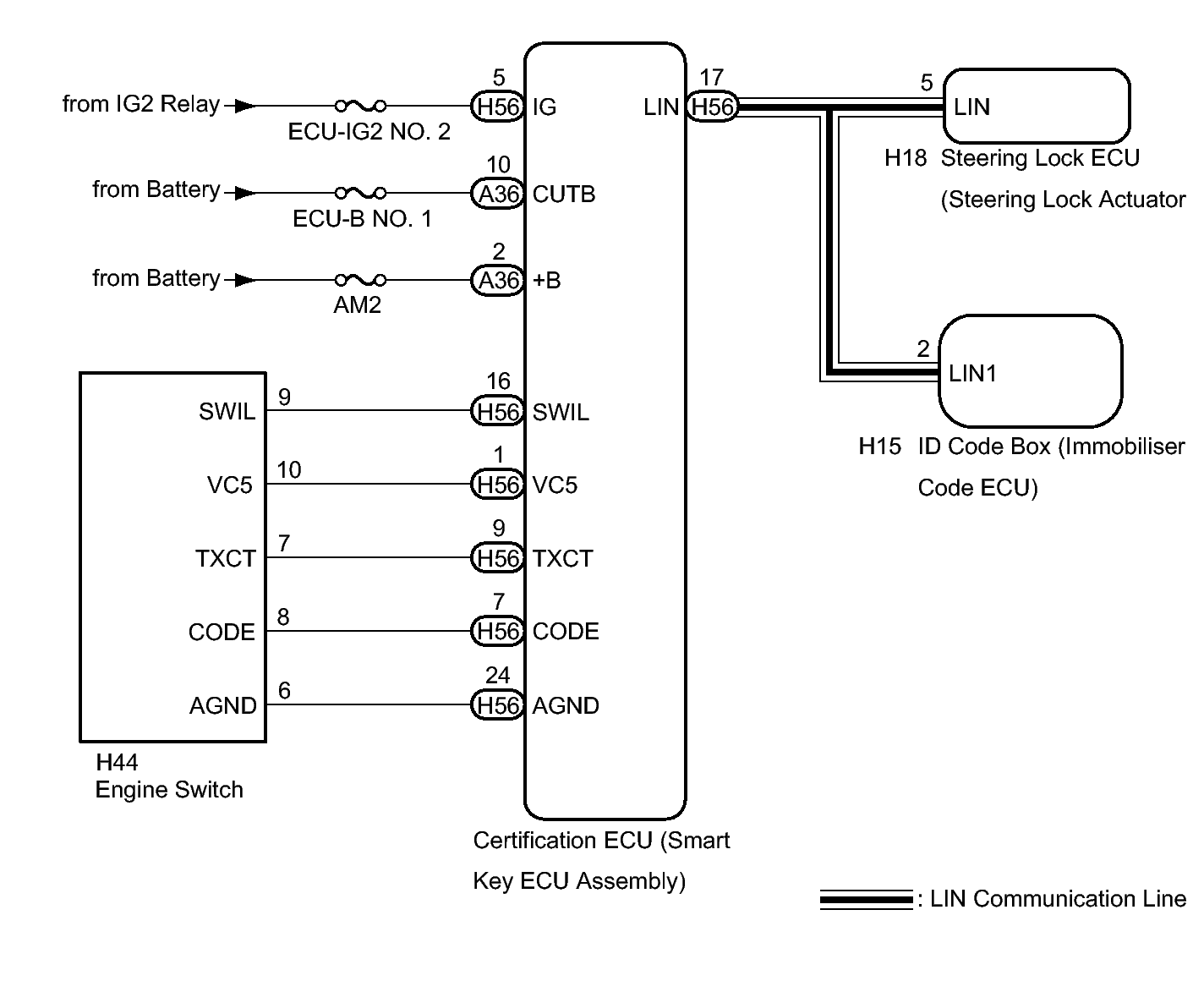

Fig 1: Smart Key Certification ECU Wiring Diagram

GTY456906

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
