Key Luggage Compartment Lock-in Prevention Function does not Operate [08/2014 - ]: Wiring Diagram

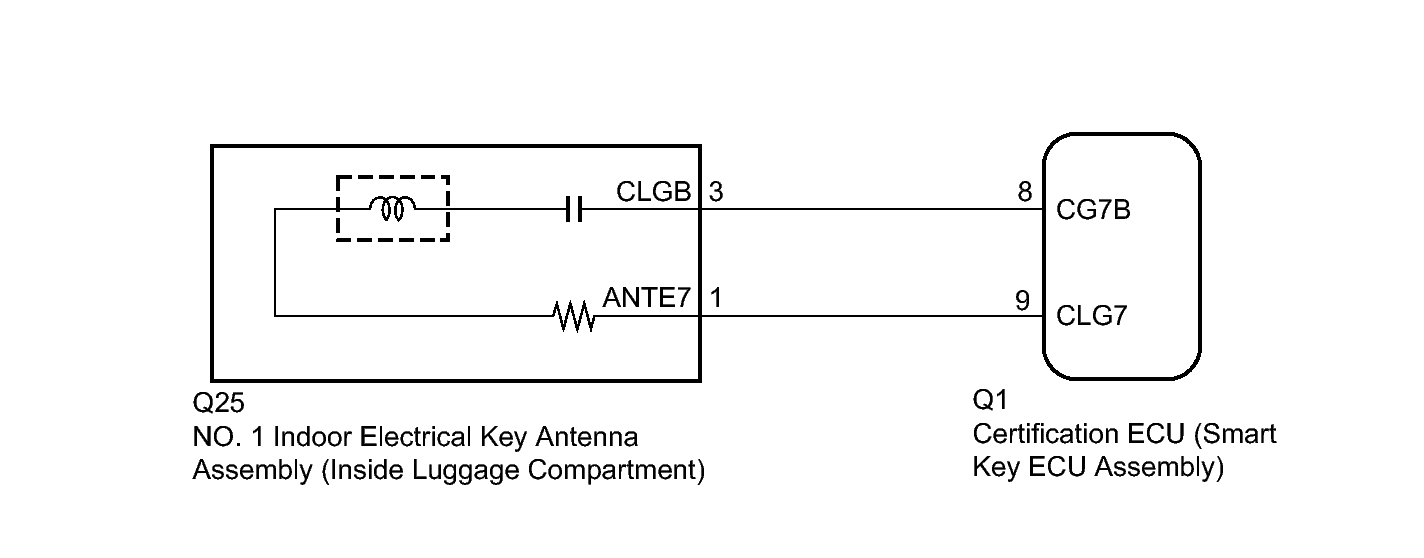

Fig 1: Inside Luggage Compartment Circuit Diagram

GTY404486

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
