DTC B27A5: Open in Front Floor Electrical Key Oscillator Circuit [08/2014 - ]: Wiring Diagram

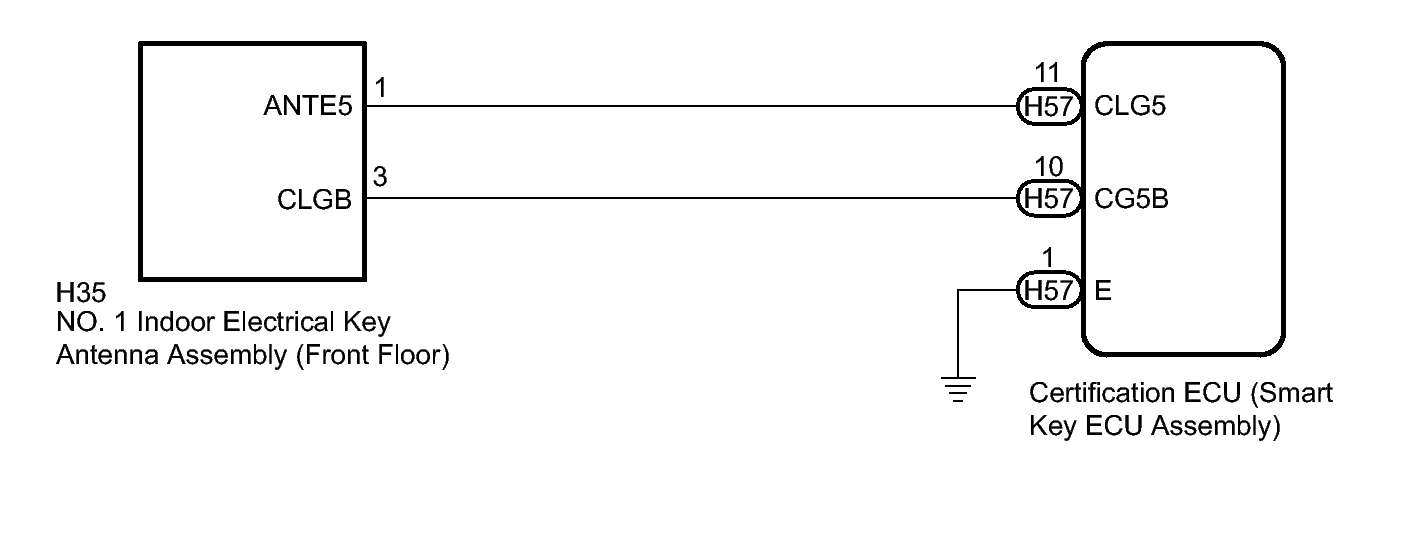

Fig 1: Front Floor Electrical Key Oscillator Circuit Wiring Diagram
GTY403490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
